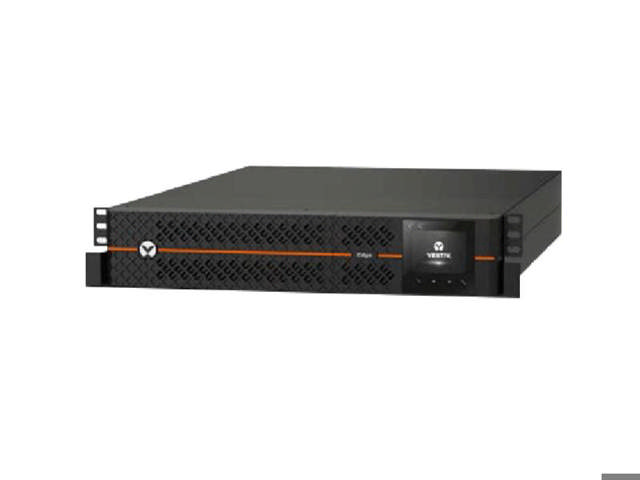

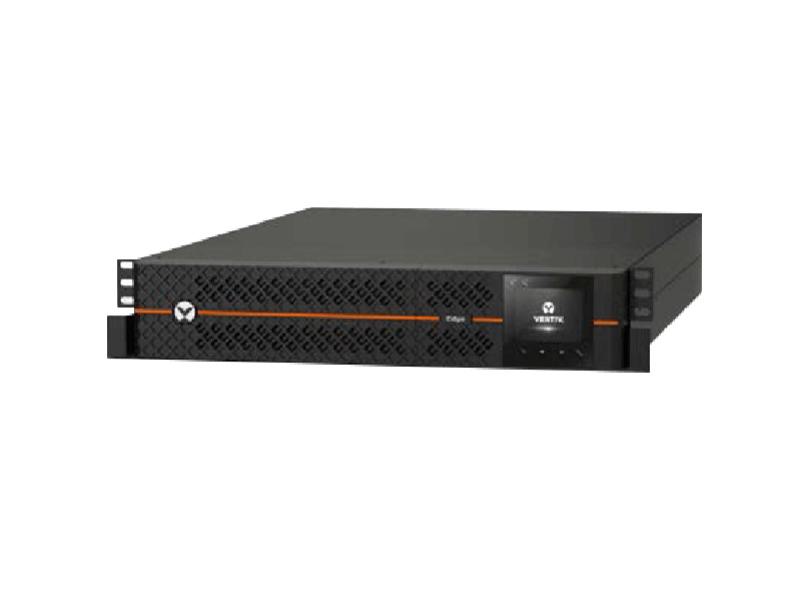

Vertiv Edge 3000VA 2700W 2U Tower/Rack
Vertiv Edge UPS 3000IRT2UXL, 3000VA 2700W 230V Line Interactive UPS, 2U Tower, Rack-Mountable, 6x IEC 60320 C13, 1x IEC 60320 C19, Single Phase
Vertiv Edge UPS (EDGE-3000IRT2UXL) UPS is a 3000VA / 2700W / 230V line interactive UPS in a 2U tower/rack mount form factor with high 0.9 PF. This variant is equipped with a rotatable LCD monitor, advanced AVR for a more stable output voltage regulation and 6 total outlets with 3 programmable ones that can prioritize critical loads. Has a feature to add communication card to manage devices remotely.
EDGE-3000IRT2UXL
RRP $3,173.00
Available in stock
Product Information
-
- High output PF=0.9 to maximize available power and protect more equipment
- High efficiency, up to 98% in line mode, to deliver energy savings
- 1U, 2U, 3U, tower, rack/tower form factors, with power ratings from 500VA to 3000VA, to address a broad range of power requirements
- Advanced AVR protection with 2x boost and 1x buck tap to protect the battery by smoothing out spikes, sags and brownouts
- Color graphic LCD display
- Add up to 6 extended run battery cabinets to increase runtime
- External battery cabinets with auto-detection
- Rack/tower 3kVA model with short depth for flexible installation
- "Green mode" operation: in battery mode with small loads, the UPS will automatically shut down to protect batteries, optimize energy savings
- Programmable outlets to disable non-critical loads, optimize battery runtime
- Input breaker device for additional protection to the load in worst case failures
- Smart fan speed control for lower audible noise
- Remote connectivity via network interface or serial connection to monitor power consumption and configure user-defined alert notifications to prevent downtime
- Extend battery life with deep discharge protection
- RoHS and REACH compliant
Specifications
| Warranty | 3 Years |
| Active Cooling | No |
| Audible Alarm | Batt. Mode low battery overload fault etc. |
| Australian Outlets - Surge Protection | Single Phase |
| Australian Outlets - UPS | 0 |
| Battery Type | Valve-regulated Non-spillable Lead acid |
| Capacity VA | 2700W/3000VA |
| Dimensions | 438mm x 630mm x 86mm |
| Expandable Batteries | Yes |
| Form factor | Rack / Tower |
| Frequency Range | 45/65Hz (Auto sensing) |
| Hard-Line | No |
| Hot Swappable Batteries | Yes |
| IEC 13 Count | 6 |
| IEC 19 Count | 0 |
| Interface | USB interface |
| LCD Alarm | AC Mode Battery Mode Low Battery Fault Overload |
| Model Number | EDGE-3000IRT2UXL |
| Noise Level | Less than 45dB AVR mode |
| Operating Temperature Range | 0-40 C |
| Output Voltage | 200-240Vac |
| Phase Count | Single Phase |
| Sine Wave | Pure Sinewave |
| SNMP Compatible | Yes |
| Software | Vertiv Power |
| Surge Protection | 624 Joules |
| Topology | Line-interactive |
| Voltage | 230Vac |
| Voltage Range | 166-278Vac |
| Weight | 34kg |
