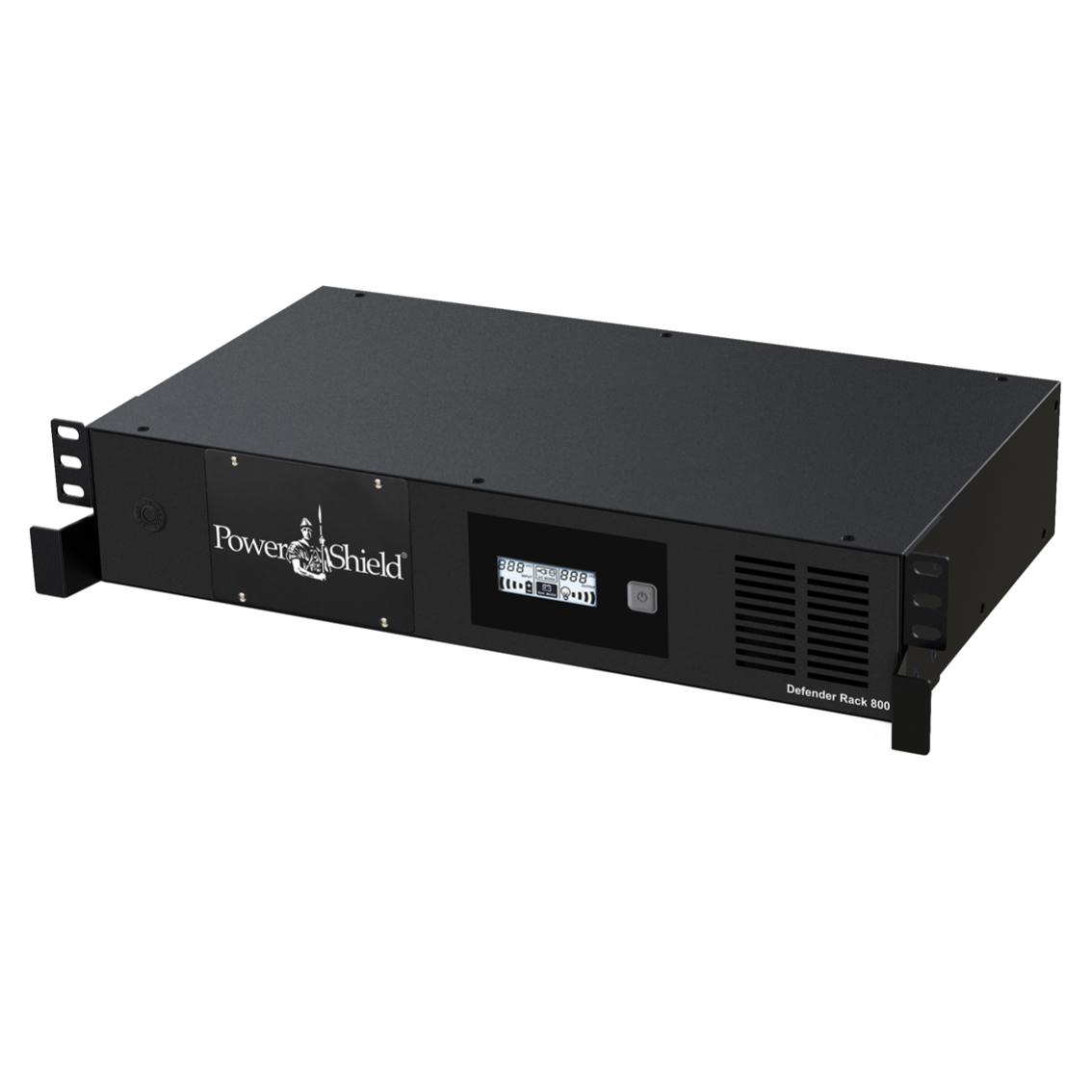

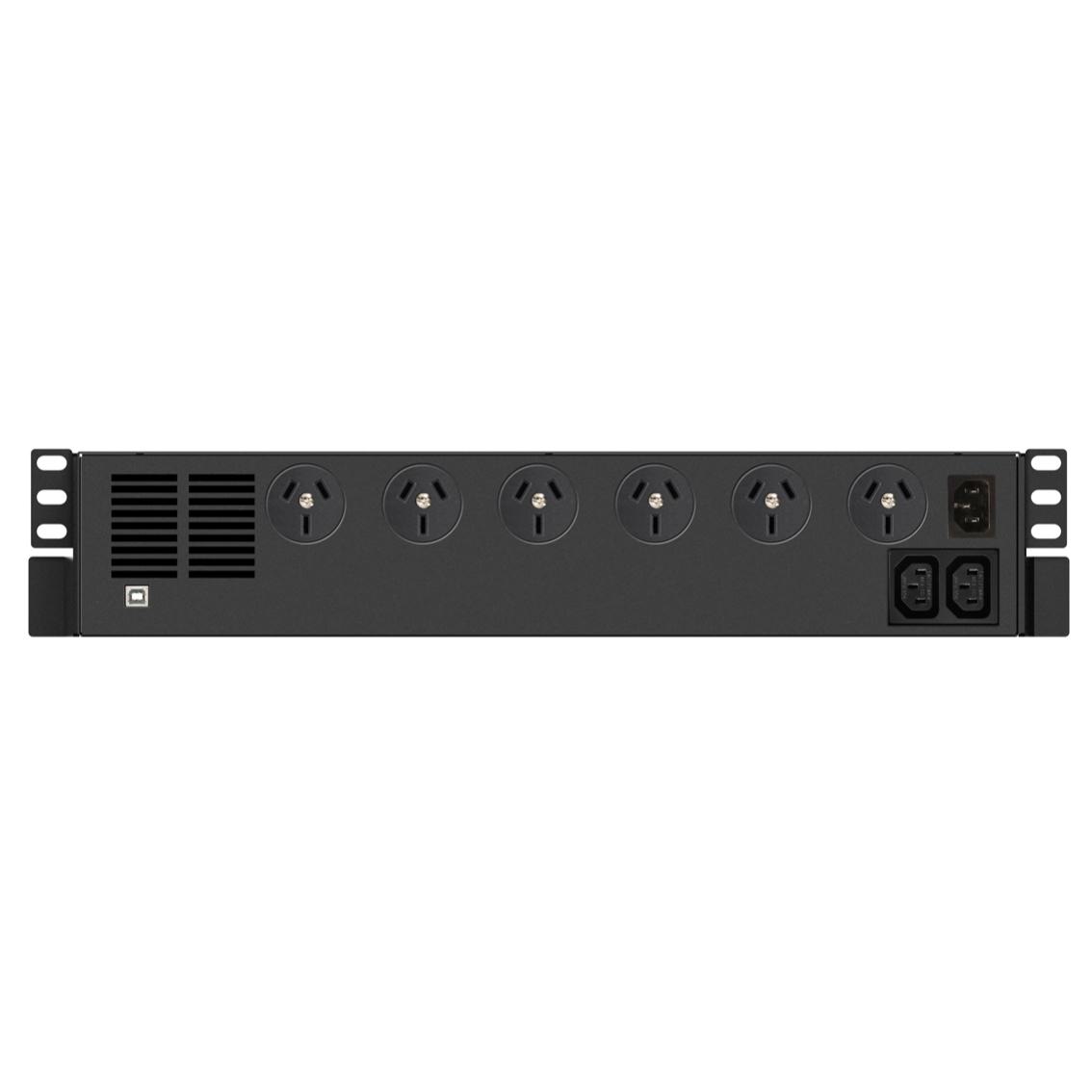

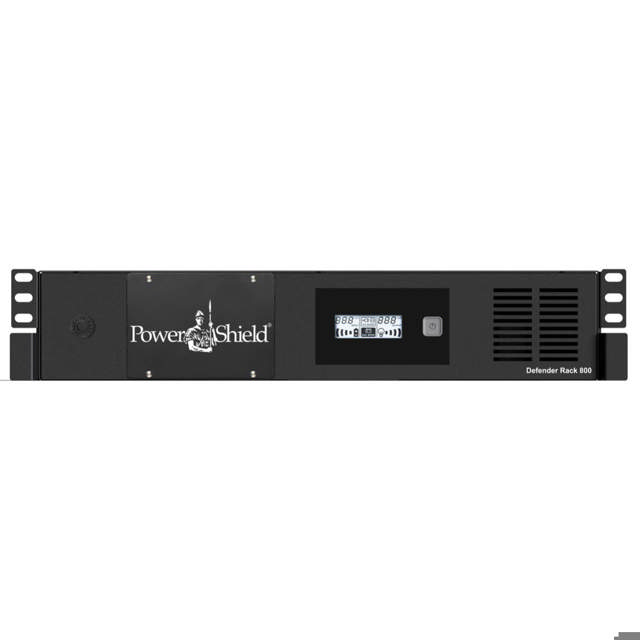

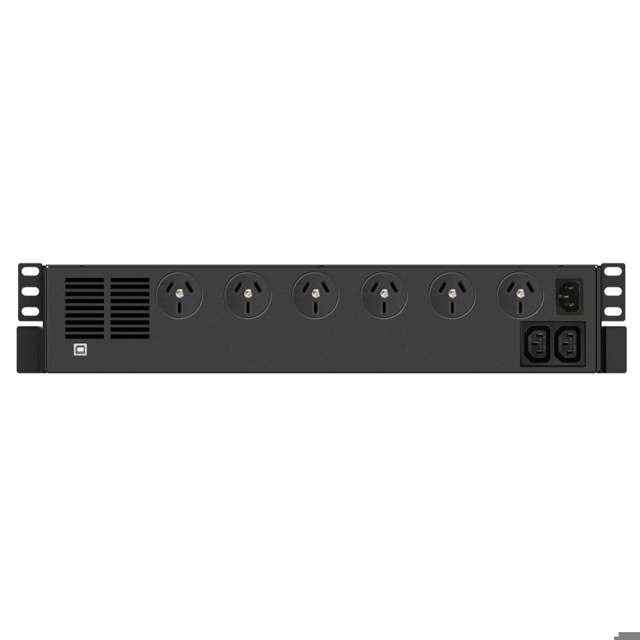

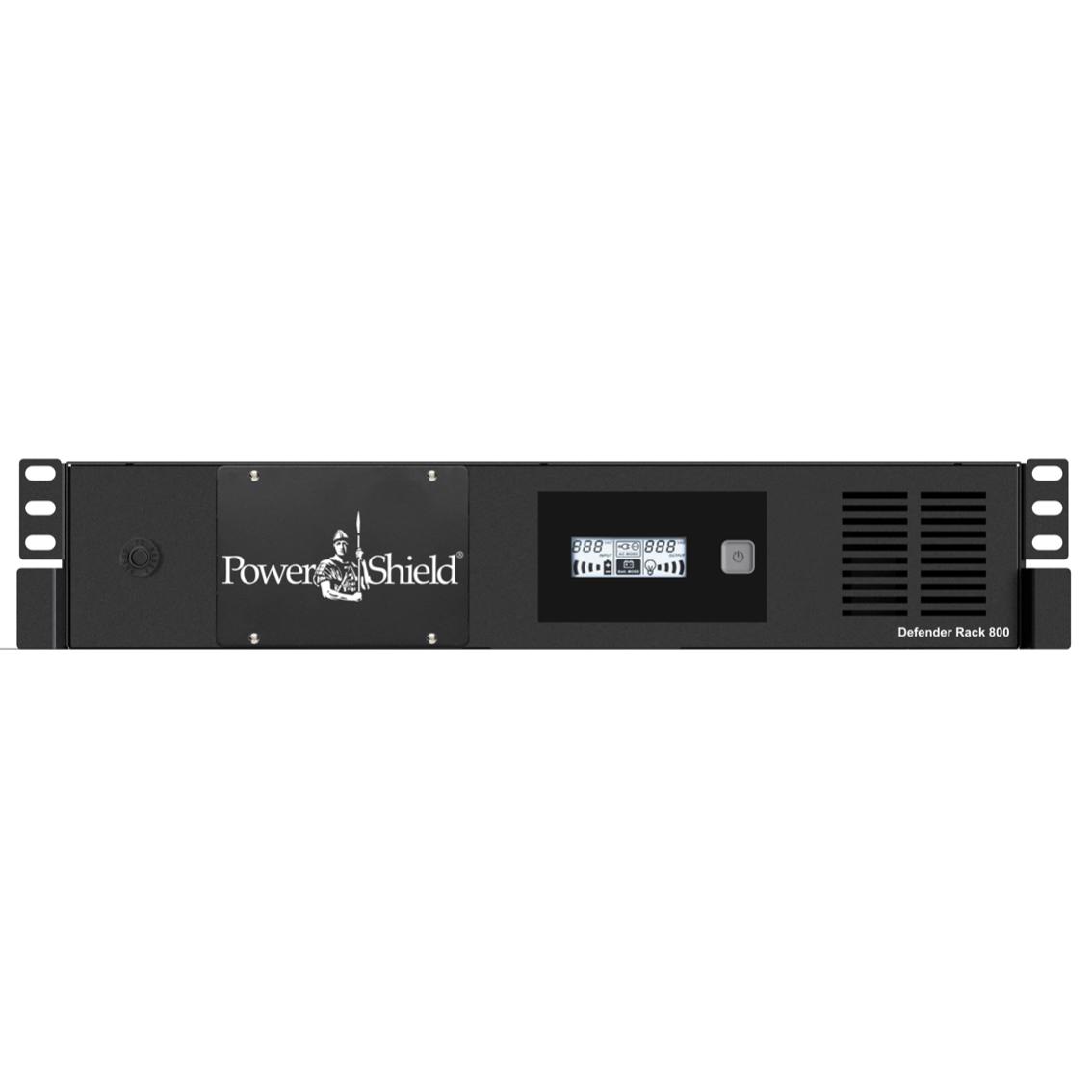

Powershield Defender 800VA Rack UPS
PowerShield PSDR800 Defender Rackmount 800VA/480W, Line Interactive, Hot Swappable Battery, 230 x 438 x 86mm, 2 Year Advanced Replacement Warranty
This UPS 800VA Defender Rack Mount expands the successful Defender Range by building the popular features into a Rack Mount UPS. At 230mm deep, this is the perfect UPS for shallow, wall mounted Comms cabinets. This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting
your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.
PSDR800
RRP $546.00
Available in stock
Product Information
-
- Surge Protection
- Informative LCD display
- Inbuilt Battery Management (HID)
- The 230mm depth is the shallowest rackmountable solution in the market
- Can be used standing up
- Conformal Coating Available as a separate purchase
- For Technical Help please contact PowerShield on 1300 305 393
Specifications
| Warranty | 2 Years |
| Active Cooling | No |
| Audible Alarm | Batt. Mode low battery overload fault etc. |
| Australian Outlets - Surge Protection | Single Phase |
| Australian Outlets - UPS | 6 |
| Battery Type | 12V 9AH (x1) |
| Capacity VA | 480W/800VA |
| Dimensions | 230mm x 438mm x 86mm |
| Expandable Batteries | Yes |
| Form factor | Rackmount |
| Frequency Range | 50Hz or 60Hz Ā±1Hz |
| Hard-Line | No |
| Hot Swappable Batteries | Yes |
| IEC 13 Count | 2 |
| IEC 19 Count | 0 |
| Interface | USB as standard, Intelligent slot for PSSNMP |
| LCD Alarm | AC Mode Battery Mode Low Battery Fault Overload |
| Model Number | PSDR800 |
| Noise Level | Less than 40dB (no fan) |
| Operating Temperature Range | 0-40 C |
| Output Voltage | 240Vac |
| Phase Count | Single Phase |
| Sine Wave | Simulated Sinewave |
| SNMP Compatible | Yes |
| Software | Power Shield Netguard |
| Surge Protection | 312 Joules / 6500Amps |
| Topology | Line-interactive |
| Voltage | 240Vac |
| Voltage Range | 177-290Vac |
| Weight | 7.7kg |
