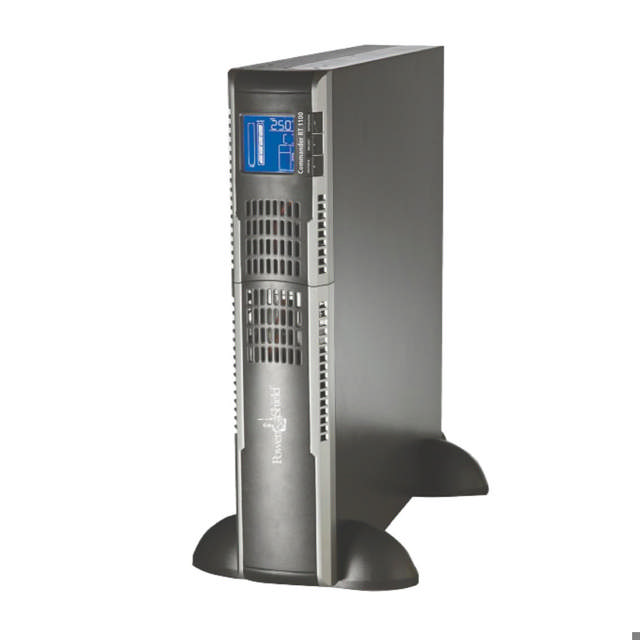

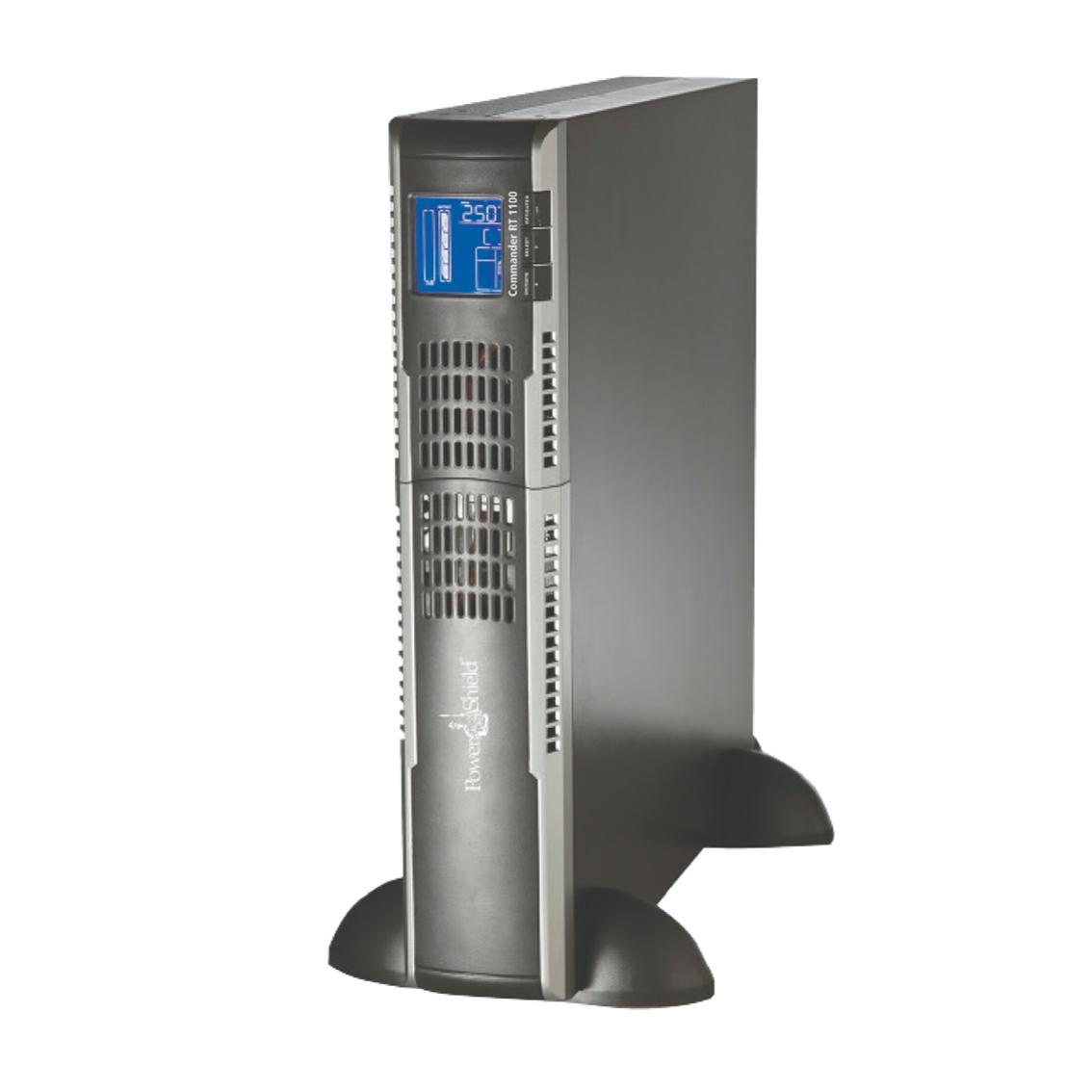

Powershield Commander RT 1100VA UPS
PowerShield PSCRT1100 Commander 1100VA / 990W Line Interactive, Pure Sine Wave Rack / Tower UPS, 2 Year Advanced Replacement Warranty
The PowerShield Commander Rack or Tower style UPS generates a Pure Sine Wave output, providing compatibility for many types of electrical loads. The Commander RT offers power protection for applications such as networking, phone system, security and motor control to name a few.
The Advanced ECO mode function delivers cost effective operation with an efficiency as high as 98%. With features such as hot swappable batteries, highest surge rating in its class, and combination of Australian and IEC outlets, this sophisticated line interactive pure sine wave UPS is in a class of its own.
The Advanced ECO mode function delivers cost effective operation with an efficiency as high as 98%. With features such as hot swappable batteries, highest surge rating in its class, and combination of Australian and IEC outlets, this sophisticated line interactive pure sine wave UPS is in a class of its own.
PSCRT1100
RRP $1,410.00
Available in stock
Product Information
-
- 1100VA / 990 Watts
- Pure Sine Wave output
- Rack or Tower operation (Rack Mounting Rails optional)
- Built-in buck and boost AVR - Auto Voltage Regulation
- Output power factor 0.8
- Programmable Power Management outlets
- Advanced ECO mode operation for energy efficiency
- EPO - Emergency Power Off Function
- Hot swappable batteries
- Surge protection that is best in its class
- Included Software: PowerShield NetGuard UPS monitoring and control
- Communications: Visual LCD, Audible Alarms, USB & RS232
- Optional Communication: SNMP, AS400 Dry Relays
- Also available in 2000VA & 3000VA
- For Technical Help please contact PowerShield on 1300 305 393
Specifications
| Warranty | 2 Years |
| Active Cooling | No |
| Audible Alarm | Batt. Mode low battery overload fault etc. |
| Australian Outlets - Surge Protection | Single Phase |
| Australian Outlets - UPS | 3 |
| Battery Type | 12V 9AH (x2) |
| Capacity VA | 990W/1100VA |
| Dimensions | 380mm x 438mm x 88mm |
| Expandable Batteries | No |
| Form factor | Rack / Tower |
| Frequency Range | 50/60 Hz +/- 5 Hz (auto sensing) |
| Hard-Line | No |
| Hot Swappable Batteries | Yes |
| IEC 13 Count | 2 |
| IEC 19 Count | 0 |
| Interface | USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact |
| LCD Alarm | AC mode Batt. mode Load Level Input Voltage Output Voltage Overload Fault Low Batt. Batt. |
| Model Number | PSCRT1100 |
| Noise Level | Less than 45dB |
| Operating Temperature Range | 0-40 C |
| Output Voltage | 240Vac |
| Phase Count | Single Phase |
| Sine Wave | Pure Sinewave |
| SNMP Compatible | Yes |
| Software | Power Shield Netguard |
| Surge Protection | 1560 Joules / 32500Amps |
| Topology | Line-interactive |
| Voltage | 240Vac |
| Voltage Range | 162-290Vac |
| Weight | 16kg |
