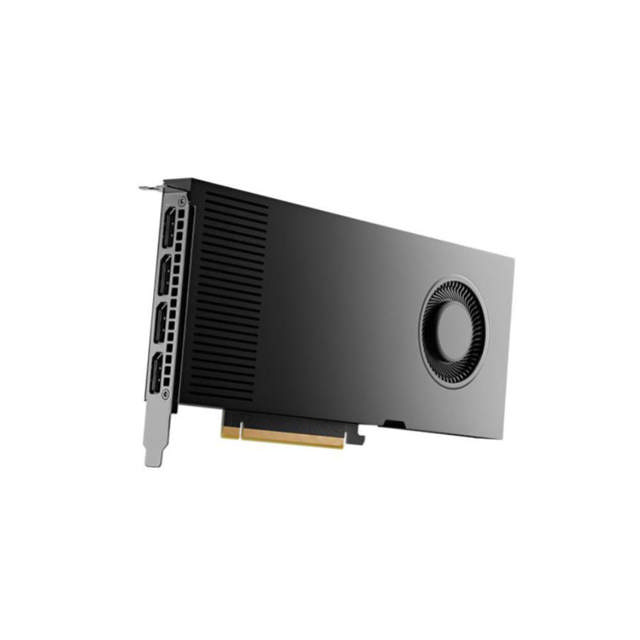

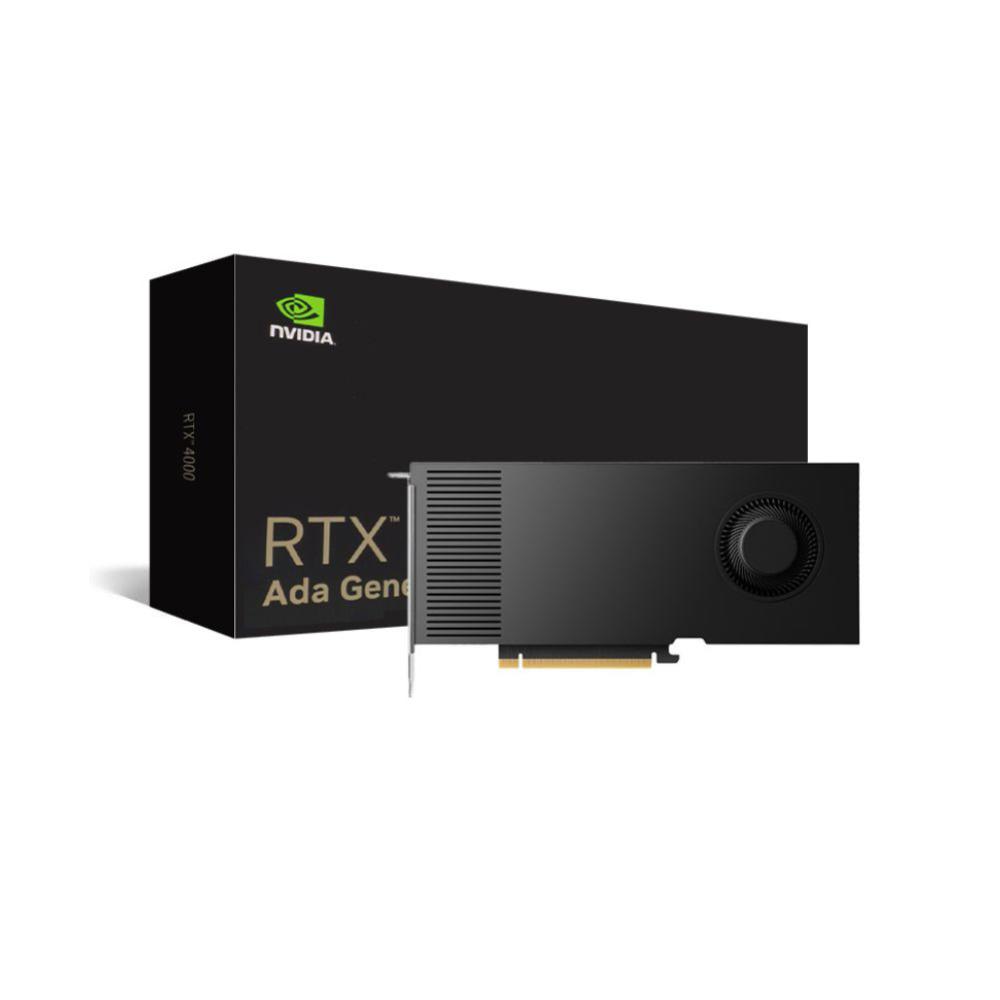

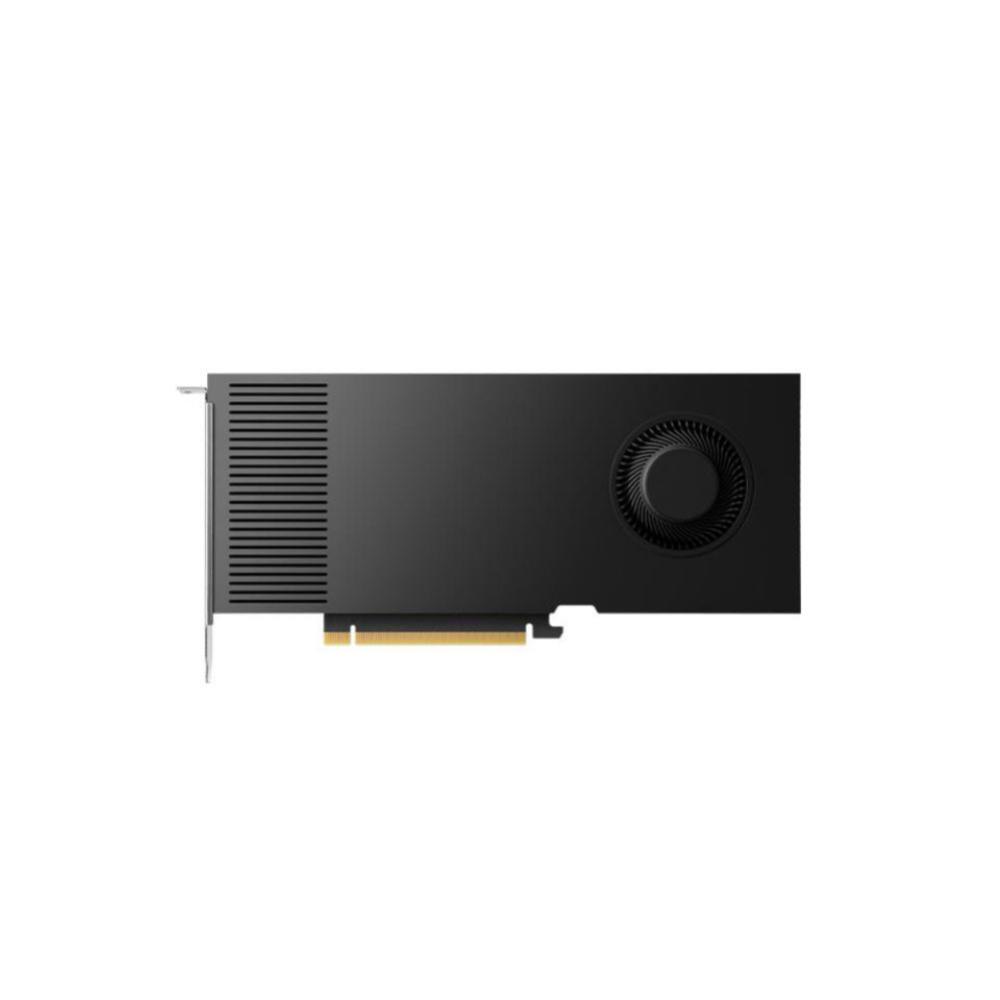

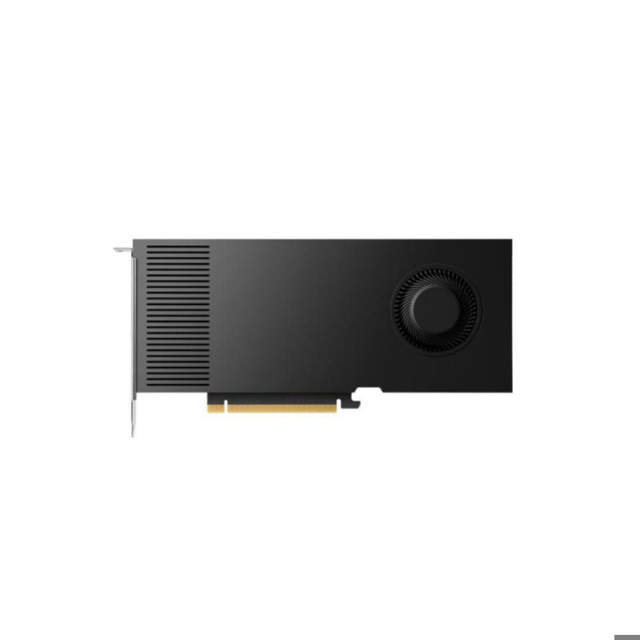

NVIDIA RTX 4000 Ada 20GB
NVIDIA RTX 4000 Ada, 20GB, GDDR6 160-bit, 280GB/s, PCIe 4.0 x 16, Single Slot, 4x Mini DisplayPort 1.4a, 130W, Ada Lovelace, 3YR Warranty
The NVIDIA RTX 4000 Ada Generation is the most powerful single-slot GPU for professionals, delivering remarkable acceleration for AI, real-time rendering, graphics, and compute workloads to your desktop. Built on the NVIDIA Ada Lovelace architecture, RTX 4000 combines 48 third-generation RT Cores, 192 fourth-generation Tensor Cores, and 6,144 CUDA cores with 20GB of graphics memory to effortlessly handle large datasets and complex visual workloads.
900-5G190-2570-000
RRP $2,650.00
Available in stock
Product Information
-
- GPU Architecture: Ada Lovelace
- GPU Memory: 20GB GDDR6 with ECC
- Display Ports: 4 x DisplayPort 1.4a
- Max Power Consumption: 130W
- Graphics Bus: PCIe Gen 4 x 16
- Form Factor: 4.4" H x 9.5" L, single slot
Specifications
| Warranty | 3 Years |
| Compute APIs | CUDA 11.6 DirectCompute OpenCL 3.0 |
| CUDA Cores | 6144 |
| Display connectors | 4x Mini DisplayPort 1.4a |
| Encode/decode engines | 2x encode 2x decode (+AV1 encode and decode) |
| Error-correcting code (ECC) | Yes |
| GPU memory | 20GB GDDR6 |
| Graphics APIs | OpenGL 4.6 Vulkan 1.3 |
| Max simultaneous displays | 2x 7680 x 4320 @ 60 Hz |
| Memory bandwidth | 320 GB/s |
| NVIDIA NVLink | No |
| NVIDIA NVLink bandwidth | No |
| Power consumption | Total board power: 130W |
| RT Core performance | 44.3 TFLOPS |
| RT Cores | 48 |
| Single-precision performance | 19.2 TFLOPS |
| System interface | PCIe 4.0 x 16 |
| Tensor Cores | 192 |
| Tensor performance | 306.8 TFLOPS |
| Thermal solution | Active |
| vGPU profiles supported | No |
| vGPU software support | No |
| VR ready | Yes |
