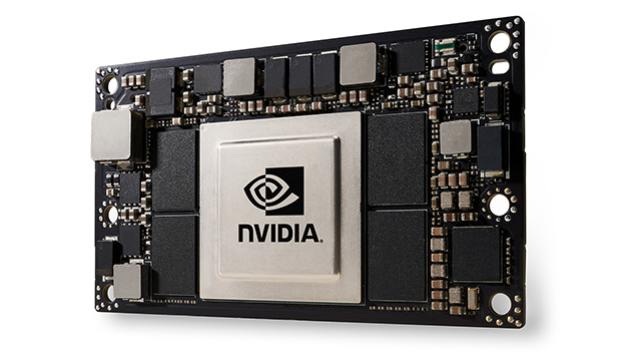

NVIDIA Jetson TX2i Module
NVIDIA Jetson TX2i Module
Rugged design, small form factor, and reduced power envelope make Jetson TX2i ideal for high-performance edge computing devices such as industrial robots, machine vision cameras, and portable medical equipment.
900-83489-0000-000
RRP $2,075.00
Available in stock
Product Information
-
- GPU: NVIDIA Pascal architecture with 256 NVIDIA CUDA cores 1.3 TFLOPS (FP16)
- CPU: Dual-core Denver 2 64-bit CPU and quad-core ARM A57 complex
- Memory: 8 GB 128-bit LPDDR4 1600MHz - 51.2 GB/s
- Storage: 32 GB eMMC 5.1
- Video Encode: 500 MP/sec 1x 4K @ 60 (HEVC) 3x 4K @ 30 (HEVC) 4x 1080p @ 60 (HEVC) 8x 1080p @ 30 (HEVC)
- Video Decode: 1000 MP/sec 2x 4K @ 60 (HEVC) 4x 4K @ 30 (HEVC) 7x 1080p @ 60 (HEVC) 14x 1080p @ 30 (HEVC)
- Connectivity: Wi-Fi requires external chip 10/100/1000 BASE-T Ethernet
- Camera: 12 lanes MIPI CSI-2, D-PHY 1.2 (30 Gbps)
- Display: HDMI 2.0 / eDP 1.4 / 2x DSI / 2x DP 1.2
- UPHY: Gen 2 | 1x4 + 1x1 OR 2x1 + 1x2, USB 3.0 + USB 2.0
- Size: 87 mm x 50 mm
- Mechanical: 400-pin connector with Thermal Transfer Plate (TTP)
