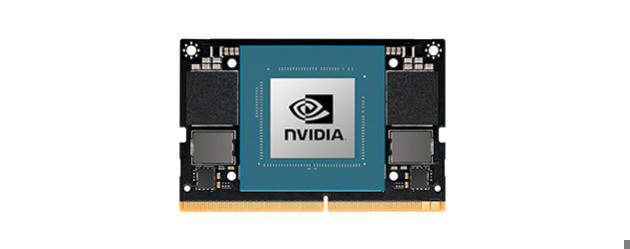

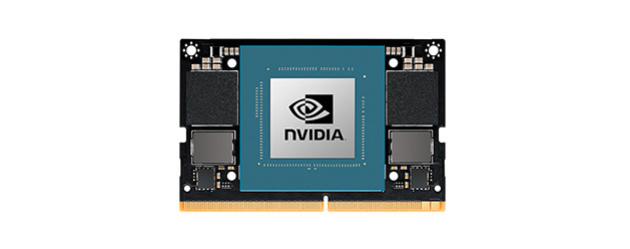

NVIDIA Jetson Orin NX 16GB Module
NVIDIA Jetson Orin NX 16GB Module
Experience the world’s most powerful AI computer for autonomous, power-efficient machines in the smallest Jetson form factor. It delivers up to 5X the performance and twice the CUDA® cores of the NVIDIA Jetson Xavier NX, plus high-speed interface support for multiple sensors. With 100 TOPS for multiple concurrent AI inference pipelines, Jetson Orin NX gives you big performance in an amazingly compact package.
900-13767-0000-000
RRP $1,688.00
Available in stock
Product Information
-
- AI Performance: 100 TOPS
- GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
- GPU Max Frequency: 918 MHz
- CPU: 8-core Arm Cortex - A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
- CPU Max Frequency: 2 GHz
- DL Accelerator: 2x NVDLA v2
- DLA Max Frequency: 614 MHz
- Vision Accelerator: 1x PVA v2
- Memory: 16GB 128-bit LPDDR5 102.4GB/s
- Storage: Supports external NVMe
- Video Encode: 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
- Video Decode: 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
- Camera: Up to 4 cameras (8 via virtual channels) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
- PCIe: 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)
- USB: 3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0
- Networking: 1x GbE
- Display: 1 x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
- Other I/O: 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
- Power: 10W - 25W
- Mechanical: 69.6mm x 45mm 260-pin SO-DIMM connector
