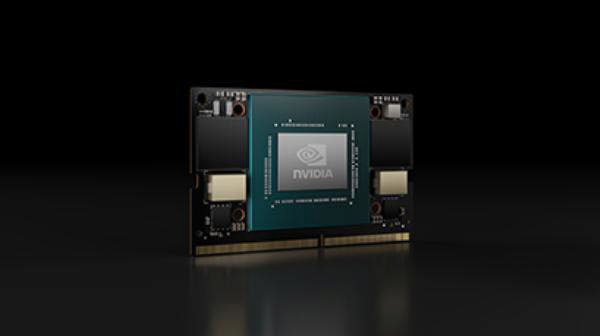

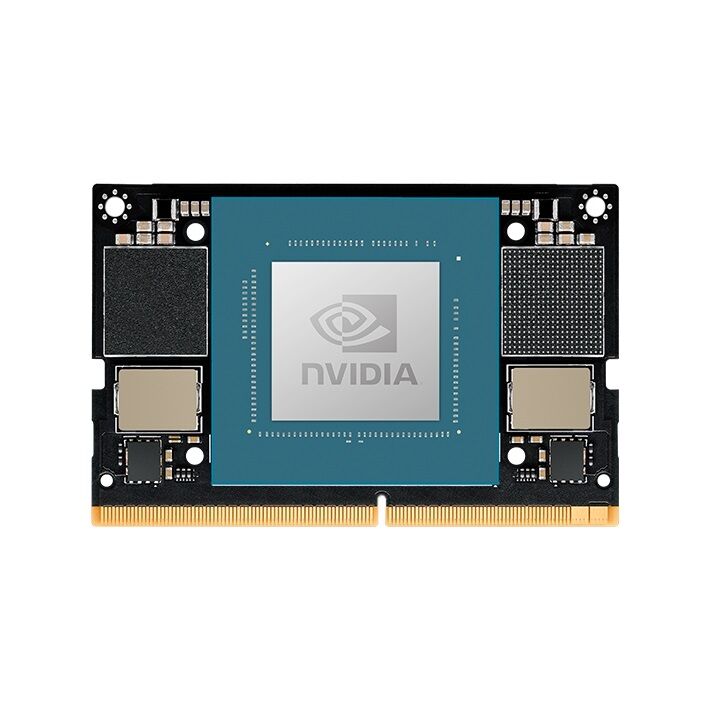

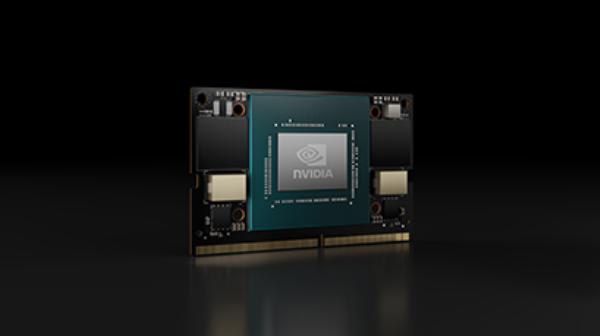

NVIDIA Jetson Orin Nano 4GB Module
NVIDIA Jetson Orin Nano 4GB Module
Jetson Orin Nano series modules deliver up to 40 TOPS of AI performance in the smallest Jetson form-factor, with power options between 7W and 15W. This gives you up to 80X the performance of NVIDIA Jetson Nano. Jetson Orin Nano is available in 8GB and 4GB versions.
900-13767-0040-000
RRP $575.00
Available in stock
Product Information
-
- AI Performance: 20 TOPS
- GPU: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
- GPU Max Frequency: 625MHz
- CPU: 6-core Arm Cortex-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
- CPU Max Frequency: 1.5 GHz
- Memory: 4GB 64-bit LPDDR5 34 GB/s
- Storage: Supports external NVMe
- Video Encode: 1080p30 supported by 1-2 CPU cores
- Video Decode: 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
- CSI Camera: Up to 4 cameras (8 via virtual channels) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
- PCIe: 1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint)
- USB: 3x USBÂ 3.2 Gen2 (10Â Gbps) 3x USB 2.0
- Networking: 1xGbE
- Display: 1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4
- Other I/O: 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
- Power: 7W - 10W
- Mechanical: 69.6mm x 45mm 260-pin SO-DIMM connector
