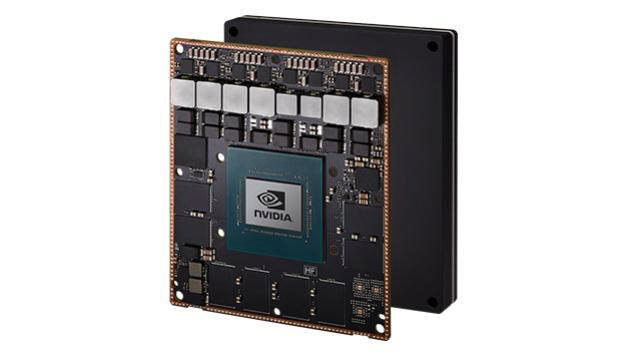

NVIDIA Jetson AGX Xavier 32GB Module
NVIDIA Jetson AGX Xavier 32GB Module
The Jetson AGX Xavier module makes AI-powered autonomous machines possible, running in as little as 10W and delivering up to 32 TOPs. As part of the world’s leading AI computing platform, it benefits from NVIDIA’s rich set of AI tools and workflows, enabling developers to quickly train and deploy neural networks.
900-82888-0040-000
RRP $2,438.00
Available in stock
Product Information
-
- GPU: NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores 22 TOPS (INT8)
- CPU: 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3
- DL Accelerator: 2x NVDLA 10 TOPS (INT8)
- Vision Accelerator: 2x PVA
- Memory: 32GB 256-bit LPDDR4x 136.5GB/s
- Storage: 32 GB eMMC 5.1
- CSI Camera: Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2, 8 lanes SLVS-EC D-PHY 1.2 (up to 40Gbps) C-PHY 1.1 (up to 62Gbps)
- Video Encode: 4x 4K60 (H.265) 8x 4K30 (H.265) 16x 1080p60 (H.265) 32x 1080p30 (H.265) 30x1080p30 (H.264)
- Video Decode: 2x 8K30 (H.265) 6x 4K60 (H.265) 12x 4K30 (H.265) 26x 1080p60 (H.265) 52x 1080p30 (H.265) 30x 1080p30 (H.264)
- UPHY: 8x PCIe Gen4 | 8x SLVS-EC 3x USB 3.1 Single Lane UFS
- Networking: 10/100/1000 BASE-T Ethernet
- Display: Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b
- Other I/O: USB 2.0 UART, SPI, CAN, I2C, I2S, DMIC & DSPK, GPIOs
- Power: 10W | 15W | 30W
- Mechanical: 100mm x 87mm 699 pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate
