NVIDIA 32-Port Switch QSFP56 Linux P2C

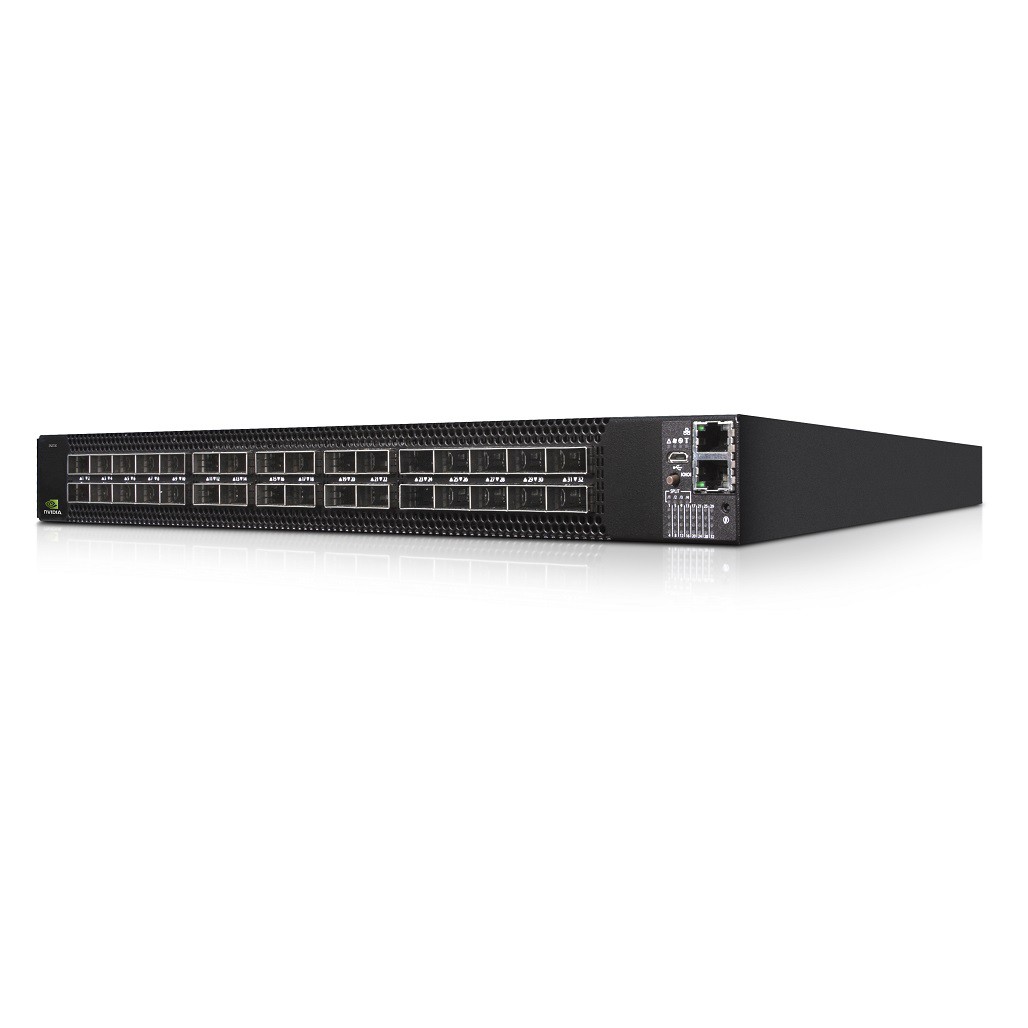

NVIDIA Spectrum SN3700, 32-Port Ethernet Switch - Cumulus Linux with 32 QSFP56 Ports, CPU, P2C Airflow
The NVIDIA Spectrum SN3000 series switches are based on the 2nd generation of Spectrum switches, purpose-built for leaf/spine/super-spine data center applications. Allowing maximum flexibility, the SN3000 series provides port speeds spanning from 1GbE to 400GbE, and a port density that enables full rack connectivity to any server at any speed. In addition, the uplink ports allow a variety of blocking ratios to suit any application requirement.
920-9N201-00FA-0C0
RRP $63,036.40
Available in stock
Product Information
-
- RJ-45 Ports: 0
- RJ-45 Speeds: 0
- Combo Ports (RJ-45 + SFP): 32 QSFP56 Ports
- SFP (Small Form-Factor Pluggable) Ports : 32
- SFP Speeds: 200GbE
- PoE++ (60w) or higher available?: No
- Number of PoE Ports: 0
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): Packet Per Second: 8.33Bpps
- Switching Capacity in Gigabits per Second (Gbps): Throughput: 12.8Tb/s
- Web-based GUI: Yes
- Redundant Power Supply: Yes
- 19" Rack Mountable: Yes
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): No
- Stacking Capacity (Virtual): Yes
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: No
- Ruggedized: No
- Operating Temperature: 0 - 40C
- Unit dimensions: 44mm x 428mm x 559mm
- Warranty Licence: 1 Year
Specifications
| Warranty | 1 Years |
| Cloud Managed | Yes |
| Cooling | Active |
| Form factor | Rack-mount |
| Licence Required | No |
| Main Port Type | Fibre |
| Managed | Fully Managed |
| OSI Layer Capability | Layer 3 |
| PoE Budget | NA |
| Port Count | 32 |
| Port Speed | 200GbE |
| Redundant Power Supply | Yes |
| SFP Ports | 32 |
| Stackable | Virtual |
| Standard Warranty | 1 Year |
