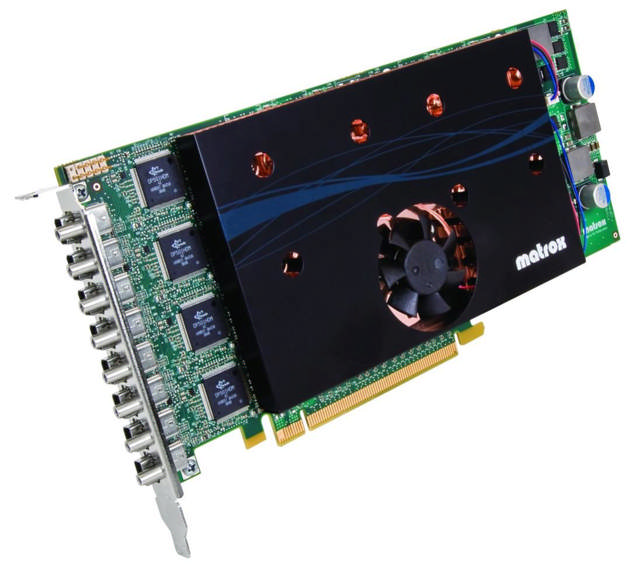

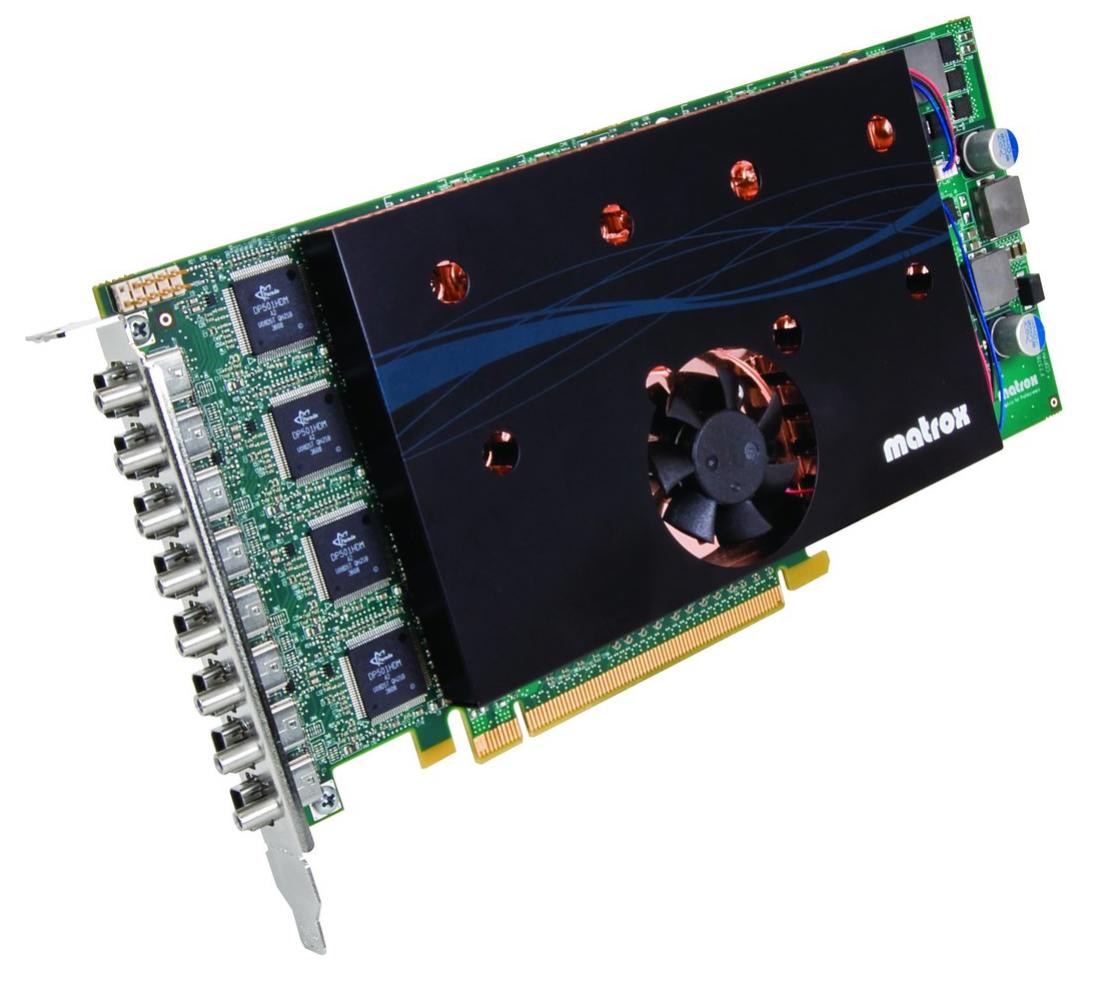

Matrox M9188 8-Port Graphics Card
Matrox M-Series M9188 PCIe x16 ATX Octal Monitor Graphics Card, 8x 2560x1600, 8x miniDP, 2 GB DDR2, 3 YR WTY
The Matrox M9188 PCIe x16 Multi-Display Octal Graphics Card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.
M9188-E2048F
RRP $4,865.00
Available in stock
Product Information
-
- High-resolution eight DisplayPort or DVI monitor support
- Support resolutions up to 2560 x 1600 (DisplayPort) and 1920 x 1200 (DVI) per output
- Native PCI Express (PCIe) x16 performance
- Maximum bandwidth to ensure best performance
- 2 GB of memory
- For enhanced performance in demanding multi-monitor control room monitoring applications
- ATX form factor

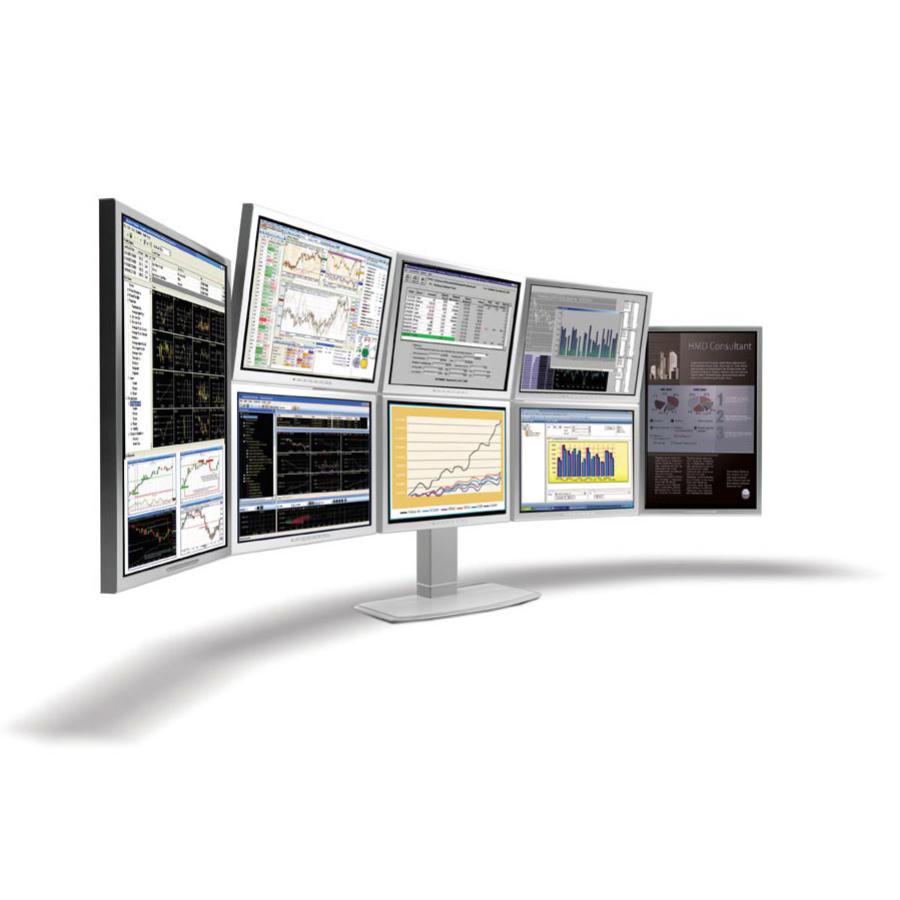

- Stretched and independent desktop modes
- Expand your desktop across multiple monitors or set each monitor independent of each other
- Edge Overlap
- Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
- M-Series multi-card support1
- Add an additional M-Series card into the same system to drive up to 16 displays from two cards
- Joined graphics card mode2
- Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
- Matrox Clone
- View a copy of one display on the other displays
- Wide enterprise flexibility
- Unified driver package compatible with other Matrox products
- Matrox PowerDesk software
- Easily configure and manage program windows on multiple monitors
- Multiple operating system support
- Display drivers for Microsoft Windows 10 (32-bit, 64-bit; non-WHQL), Windows Server® 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista® (32-bit,

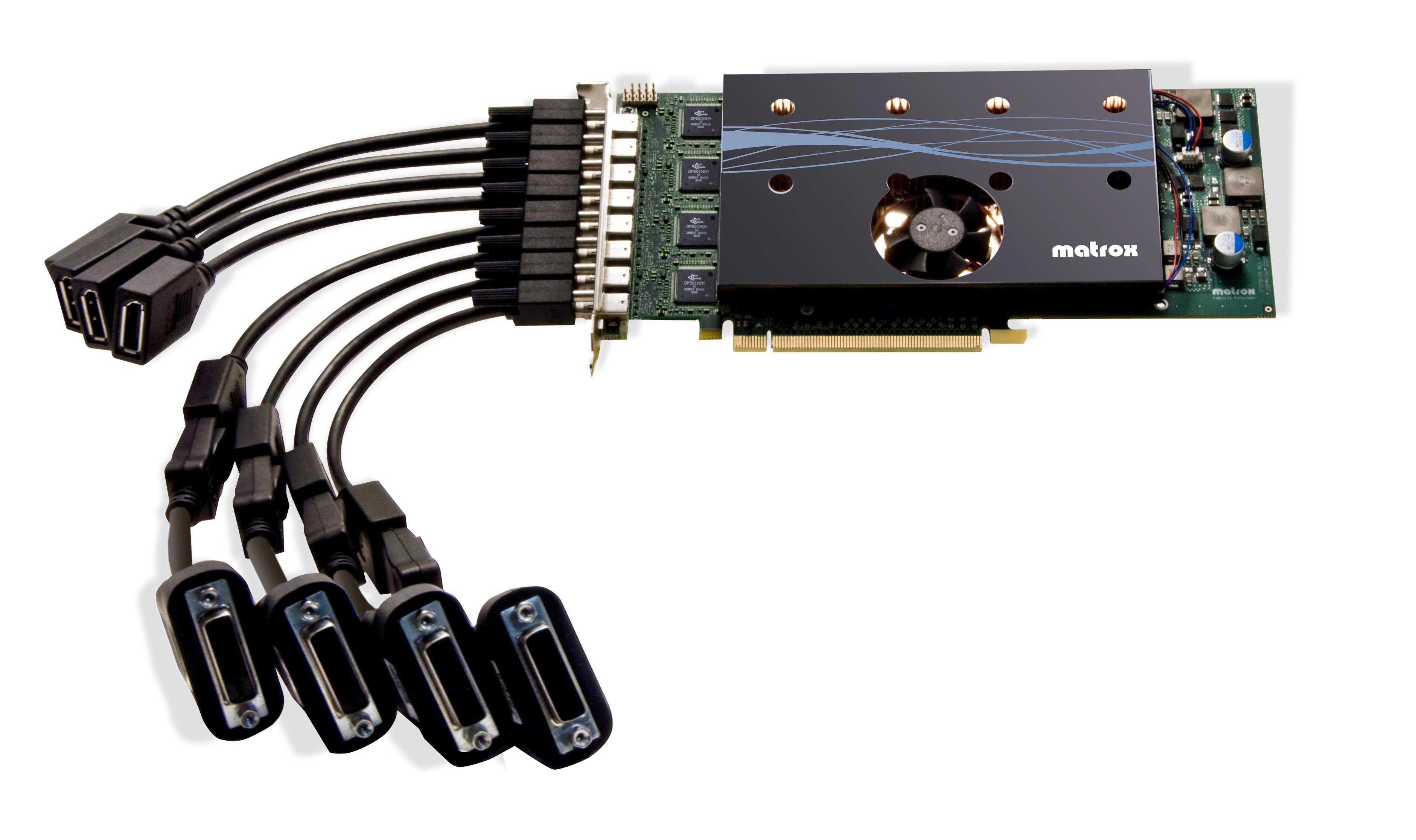

- Includes 8x DisplayPort to DVI adapters
- 8x Mini DisplayPort to DisplayPort adapters
Specifications
| Warranty | 3 Years |
| GPU memory | 2 GB DDR2 |
| Max simultaneous displays | 8x 2560 x 1600 |
| System interface | PCIe x16 |
| vGPU software support | Matrox PowerDesk |
