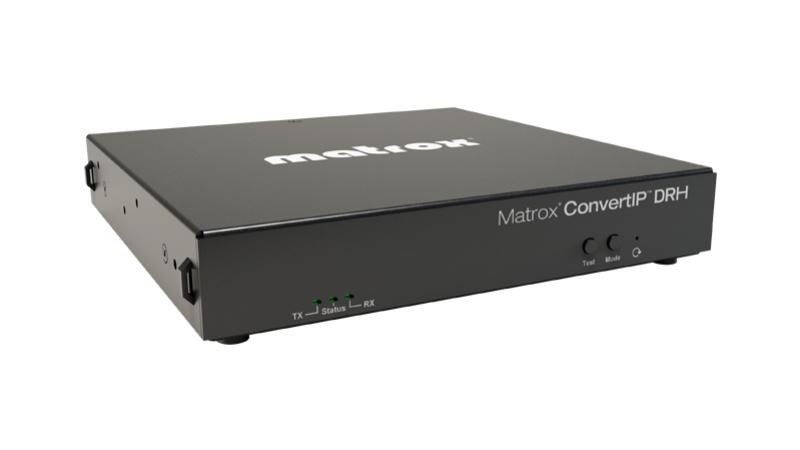

Matrox ConvertIP DRH Encoder/Decoder
Matrox ConvertIP DRH SMPTE 2110 and IPMX to HDMI Encoder/Decoder. 3 YR WTY
Matrox ConvertIP DRH is a compact, standalone ST 2110 and IPMX encoder/decoder device. Featuring HDMI I/O and three RJ45 ports on a single device, ConvertIP DRH is designed for 1G AV workflows and is optimal for an ultra-low latency experience. The device can receive power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.
CIP-DRH
RRP $3,999.00
Available in stock
Product Information
-

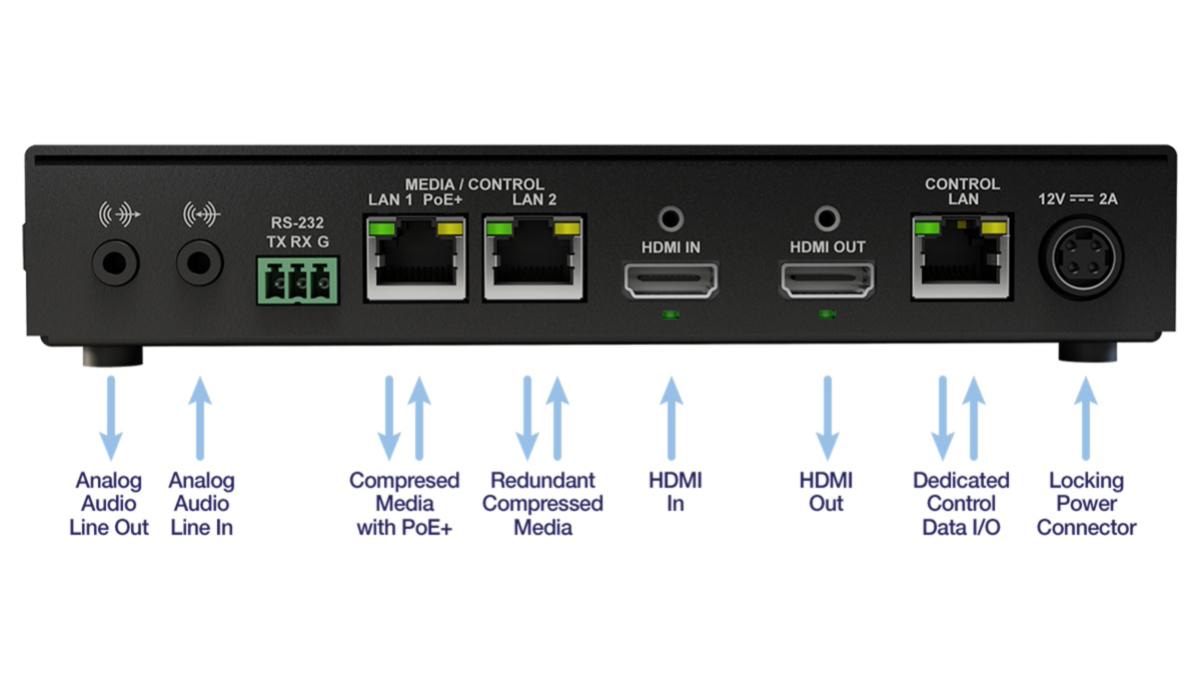

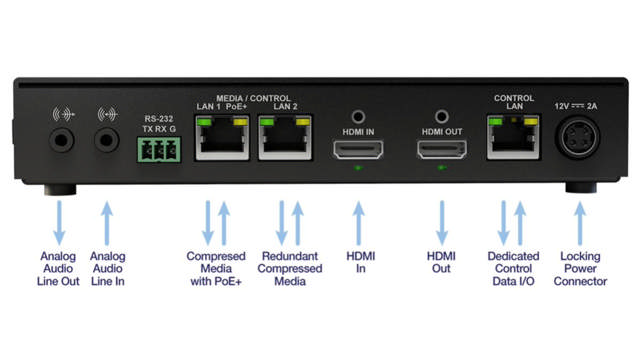

- HDMI I/O
- Multi-network support - 2x RJ45 (1G & 2.5G network support for Media and Control)
- 1x RJ45 (1G network support for independent control network)
- Single device that transmits or receives IP signals
- Standardized Discovery and Routing - based on AMWA NMOS IS-04 and IS-05 specifications
- Fanless design for quiet cooling
- Zero-latency HDMI loop-out
- Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
- Compact form factor mounts easily to the back of a monitor
- Web-based user interface for managing ConvertIP devices
- Complimentary ConvertIP Manager Windows application for simple commission and deployment
- HDCP 1.4 and 2.2 support
Specifications
| Warranty | 3 Years |
