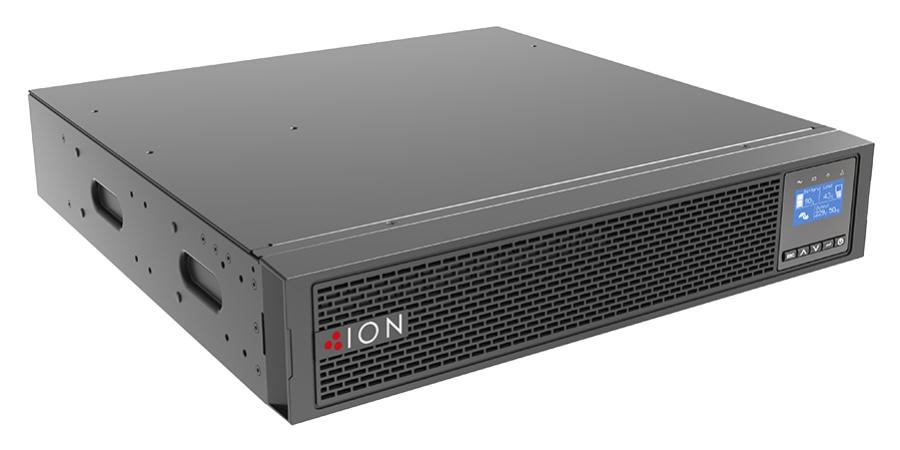

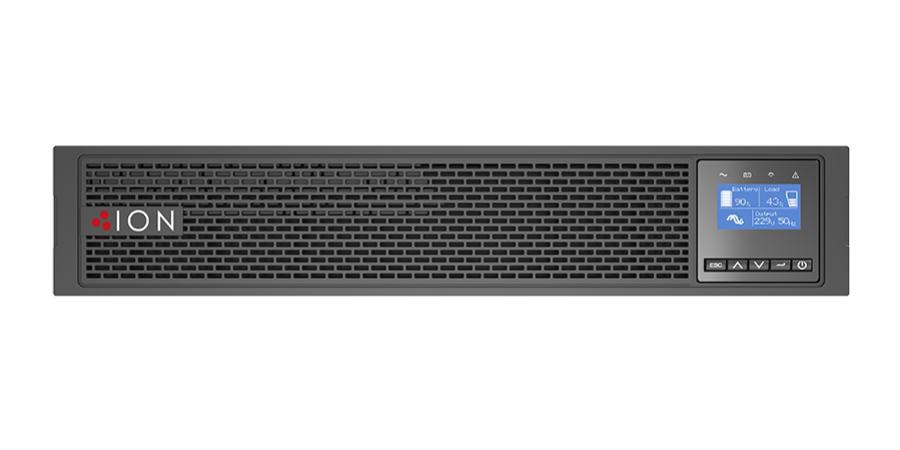

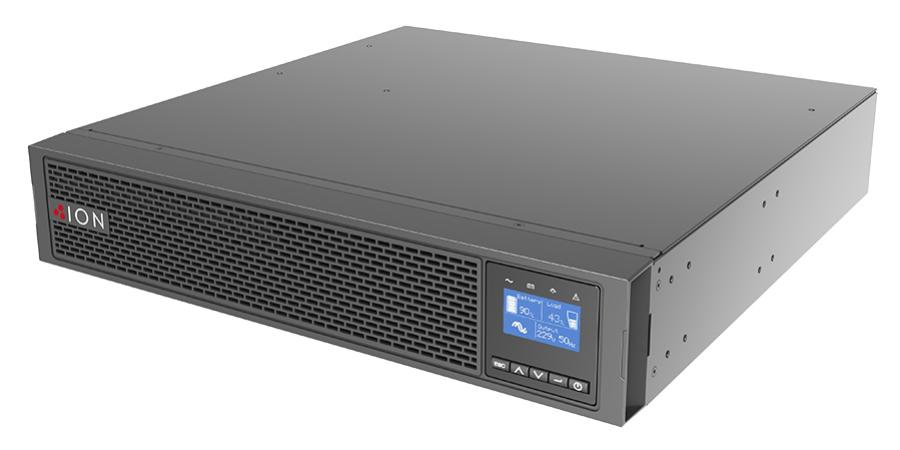

Ion F18 IOT 3000VA / 3000W 1.0 PF 2U UPS
ION F18 IOT 3000VA / 3000W Double Conversion Online, 1.0PF, Pure Sine Wave, 2U Rack/Tower, 8x IEC C13, 1x IEC C19, 3Y Adv Warranty + Rail Kit
The all new ION F18 IOT Unity Rack/Tower UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of >97%, the F18 UPS cuts energy costs while packing up to 3kW of power into only 2RU of rack space. The F18 UPS range also has a LCD user interface to simplify monitoring and IOT communications as standard. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss, corruption and downtime.
F18-IOT-3KW-RT
RRP $1,999.00
Available in stock
Product Information
-
- Capability to connect to cloud.
- Grouped programmable outlets
- Unity 1.0 power factor
- Wide voltage input range
- High efficiency
- Optional additional batteries for extendable run time
- Easy battery replacement, hot swappable
- Automatic detect numbers of EBM
- Power management software
- Optional SNMP & relay cards
- Optional Wi-Fi communication module
- Compact design (2RU)
- Flexible rack/tower footprint
Specifications
| Warranty | 3 Years |
| Active Cooling | No |
| Audible Alarm | Batt. Mode low battery overload fault etc. |
| Australian Outlets - Surge Protection | Single Phase |
| Australian Outlets - UPS | 0 |
| Battery Type | 12V 9AH (x6) |
| Capacity VA | 3000W/3000VA |
| Dimensions | 85.5mm x 438mm x 600mm |
| Expandable Batteries | Yes |
| Form factor | Rack / Tower |
| Frequency Range | 50/60 Hz +/- 3 Hz (auto sensing) |
| Hard-Line | No |
| Hot Swappable Batteries | Yes |
| IEC 13 Count | 8 |
| IEC 19 Count | 1 |
| Interface | RS232 / USB / EPO |
| LCD Alarm | AC Mode Battery Mode Low Battery Fault Overload |
| Model Number | F18-IOT-3KW-RT |
| Noise Level | Less than 50dB |
| Operating Temperature Range | 0-40 C |
| Output Voltage | 230Vac |
| Phase Count | Single Phase |
| Sine Wave | Pure Sinewave |
| SNMP Compatible | Yes |
| Software | NA |
| Surge Protection | NA |
| Topology | Double Conversion Online |
| Voltage | 230Vac |
| Voltage Range | 200-240Vac |
| Weight | 26.2kg |
