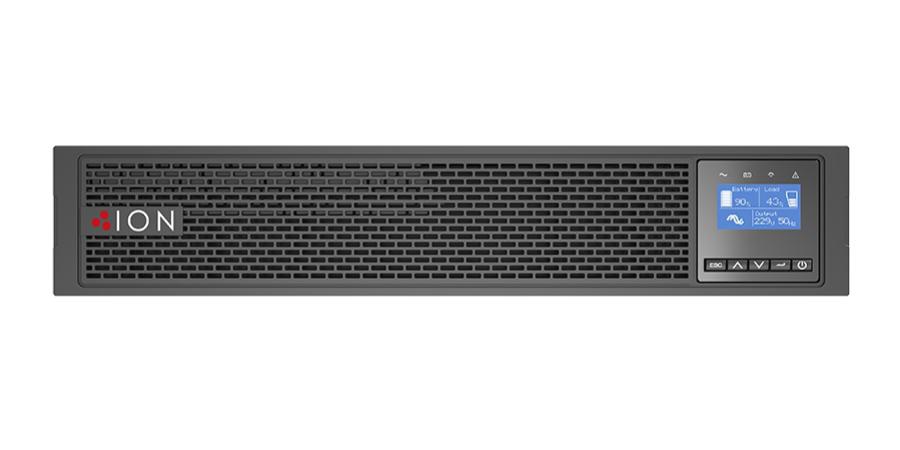

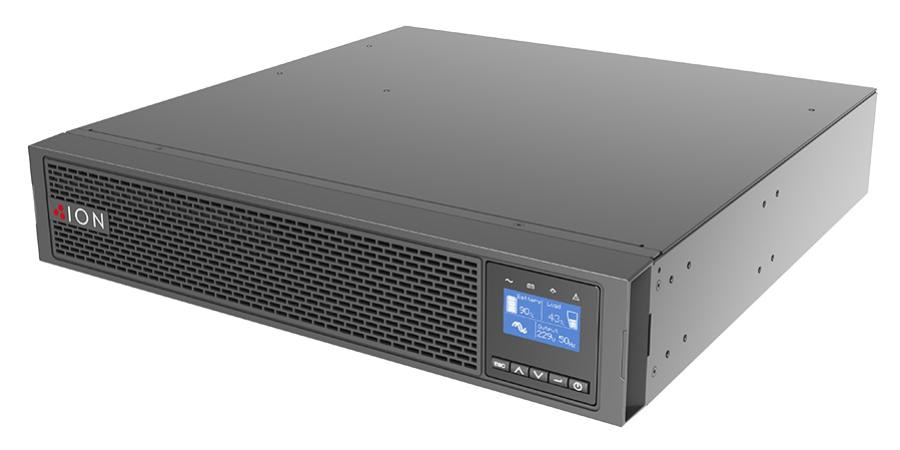

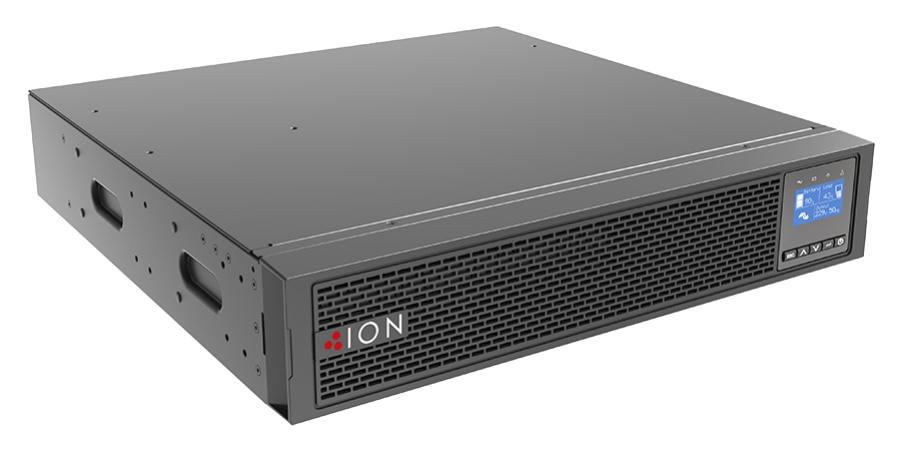

Ion F18-IOT 1000VA Rack/Tower UPS
ION F18 IOT 1000VA / 1000W Double Conversion Online, 1.0 PF, Pure Sine Wave, 2U Rack/ Tower, 8 x IEC C13, 3 Year Advanced Replacement Warranty
The all new ION F18 IOT Unity Rack/Tower UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of >98%, the F18 UPS cuts energy costs while packing up to 10kW of power into only 2RU. The F18 UPS range also has a LCD user interface to simplify monitoring and IOT communications as standard. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss, corruption and downtime
F18-IOT-1KW-RT
RRP $1,299.00
Available in stock
Product Information
-
- Capability to connect to cloud.
- Unity 1.0 power factor
- Maintenance bypass module optional
- Wide voltage input range
- High efficiency
- Optional additional battery for extendable run time
- Automatic detect numbers of EBM
- Digital charger; charging current 0-4A adjustable
- Dual input
- Power management software
- Multiple communication ports
- Optional SNMP and relay cards
- Optional Wi-Fi communication module*
- 1+1 Parallel capacity up to 3
- Smallest footprint in its class
Specifications
| Warranty | 3 Years |
| Active Cooling | No |
| Audible Alarm | Batt. Mode low battery overload fault etc. |
| Australian Outlets - Surge Protection | Single Phase |
| Australian Outlets - UPS | 0 |
| Battery Type | 12V 7AH (x3) |
| Capacity VA | 10000W/10000VA |
| Dimensions | 86.3mm x 438mm x 573mm |
| Expandable Batteries | Yes |
| Form factor | Rack / Tower |
| Frequency Range | 50/60 Hz +/- 3 Hz (auto sensing) |
| Hard-Line | Yes |
| Hot Swappable Batteries | Yes |
| IEC 13 Count | 8 |
| IEC 19 Count | 0 |
| Interface | RS232 / USB / EPO |
| LCD Alarm | AC Mode Battery Mode Low Battery Fault Overload |
| Model Number | F18-IOT-10KW-RT |
| Noise Level | Less than 50dB |
| Operating Temperature Range | 0-40 C |
| Output Voltage | 240Vac |
| Phase Count | Single Phase |
| Sine Wave | Pure Sinewave |
| SNMP Compatible | Yes |
| Software | NA |
| Surge Protection | NA |
| Topology | Double Conversion Online |
| Voltage | 230Vac |
| Voltage Range | 220-240Vac |
| Weight | 15.2kg |
