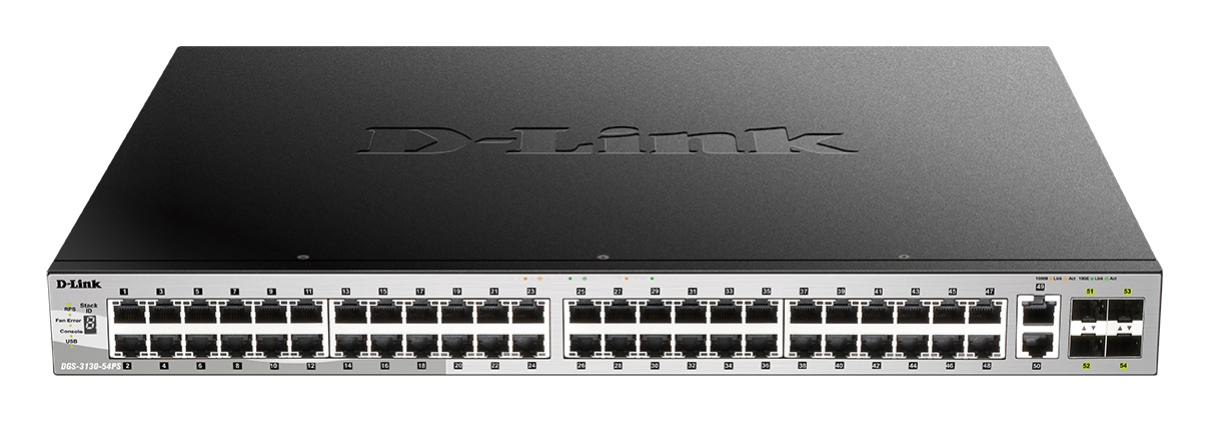

D-Link 54-Port Managed PoE Switch
D-Link 54-Port Gigabit Managed PoE Switch with 48 PoE, 2 (10G) RJ45 and 4(10G) SFP+ Ports

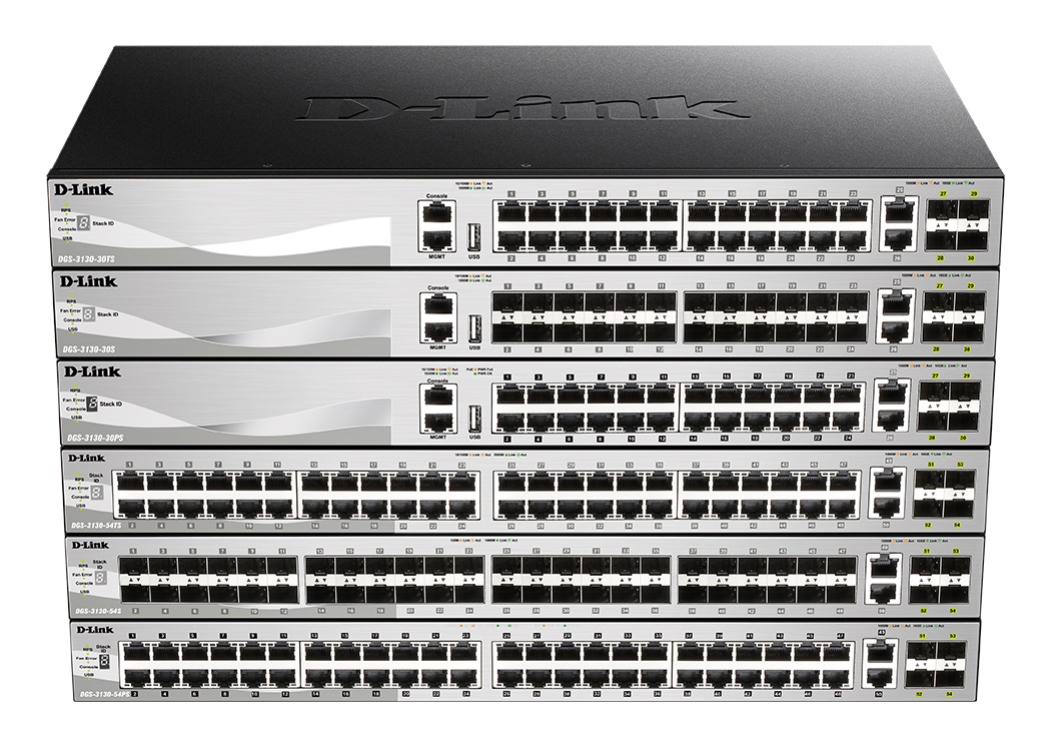

The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130 Series has models equipped with Gigabit Ethernet, Power over Ethernet (PoE) and SFP network connection options ranging from 24 to 48 ports. PoE models support 802.3af and 802.3at PoE standards with default power budgets of 370 watts and the potential to be expanded to 740 watts with the DPS-700 redundant power supply.
DGS-3130-54PS
RRP $4,499.95
Available in stock
Product Information
-
- RJ-45 Ports: 50
- RJ-45 Speeds: 10/100/1000
- Combo Ports (RJ-45 + SFP): 48 PoE + 2 (10G) RJ45 + 4(10G) SFP+ Ports
- SFP (Small Form-Factor Pluggable) Ports : 4
- SFP Speeds: 10G
- PoE++ (60w) or higher available?: Yes
- Number of PoE Ports: 48
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): 125 Mpps
- Switching Capacity in Gigabits per Second (Gbps): 168 Gbps
- Web-based GUI: Yes
- Redundant Power Supply: Yes
- 19" Rack Mountable: Rack-mount
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): Yes
- Stacking Capacity (Virtual): Yes
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
- Ruggedized: No
- Operating Temperature: 0 to 50 C
- Unit dimensions: 440 x 350 x 44 mm
- Warranty Licence: Limited Lifetime Warranty
Specifications
| Cloud Managed | No |
| Cooling | Active |
| Form factor | Rack-mount |
| Licence Required | No |
| Main Port Type | Ethernet |
| Managed | Fully Managed |
| OSI Layer Capability | Layer 3 |
| PoE Budget | 370 |
| Port Count | 54 |
| Port Speed | 10/100/1000 |
| Redundant Power Supply | Yes |
| SFP Ports | 4 |
| Stackable | Both |
| Standard Warranty | Limited Lifetime Warranty |
