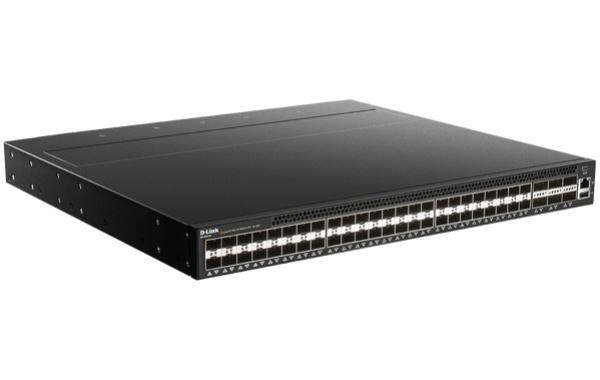

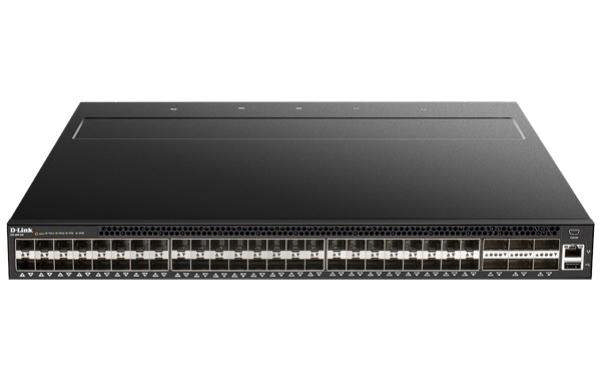

D-Link 54-Port Data Center Switch
D-Link DXS-5000, 54-Port Data Center Switch with 48 (10G) SFP+, 6 (40G) QSFP+ and 1 USB 2.0 Port

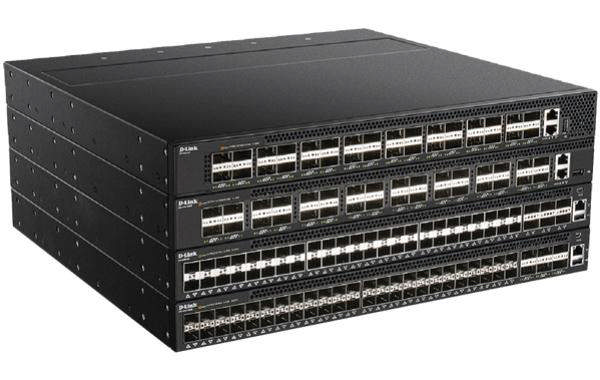

The D-Link 5000 Series Data Center Switches are a series of high-performance switches that feature high port density, routing, and ultra-low latency, designed to be deployed as Top-ofRack (ToR) or leaf-spine switches in data center applications. Combined with ONIE support and increased cost-efficiency, the 5000 Series form a flexible long-term solution for managing and expanding data center infrastructures in a Software-defined Networking (SDN) environment.
DXS-5000-54S
RRP $20,449.95
Available in stock
Product Information
-
- RJ-45 Ports: 0
- RJ-45 Speeds: 0
- Combo Ports (RJ-45 + SFP): 48 (10G) SFP+, 6 (40G) QSFP+ and 1 USB 2.0 Port
- SFP (Small Form-Factor Pluggable) Ports : 54
- SFP Speeds: 10G , 40G
- PoE++ (60w) or higher available?: No
- Number of PoE Ports: 0
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): Maximum Forwarding Rate: 1,071
- Switching Capacity in Gigabits per Second (Gbps): 1.44 Tbps
- Web-based GUI: No

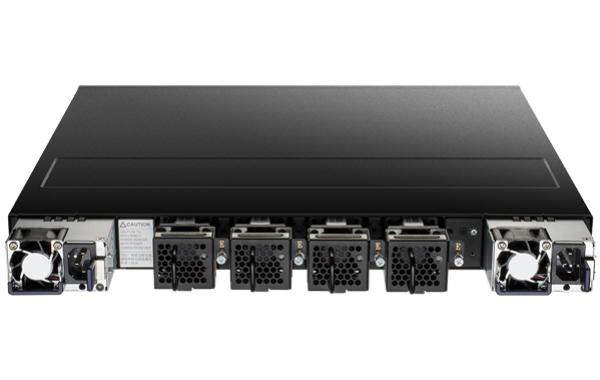

- Redundant Power Supply: Yes
- 19" Rack Mountable: Yes
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): No
- Stacking Capacity (Virtual): No
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
- Ruggedized: No
- Operating Temperature: 0 to 45 C
- Unit dimensions: 440 x 406 x 44 mm
- Warranty Licence: LIFETIME
Specifications
| Cloud Managed | No |
| Cooling | No |
| Form factor | Rack-mount |
| Licence Required | No |
| Main Port Type | Ethernet |
| Managed | Data Center Switch |
| OSI Layer Capability | Layer 3 |
| PoE Budget | NA |
| Port Count | 54 |
| Port Speed | 10/100/1000 |
| Redundant Power Supply | No |
| SFP Ports | 54 |
| Stackable | No |
| Standard Warranty | LIFETIME |
