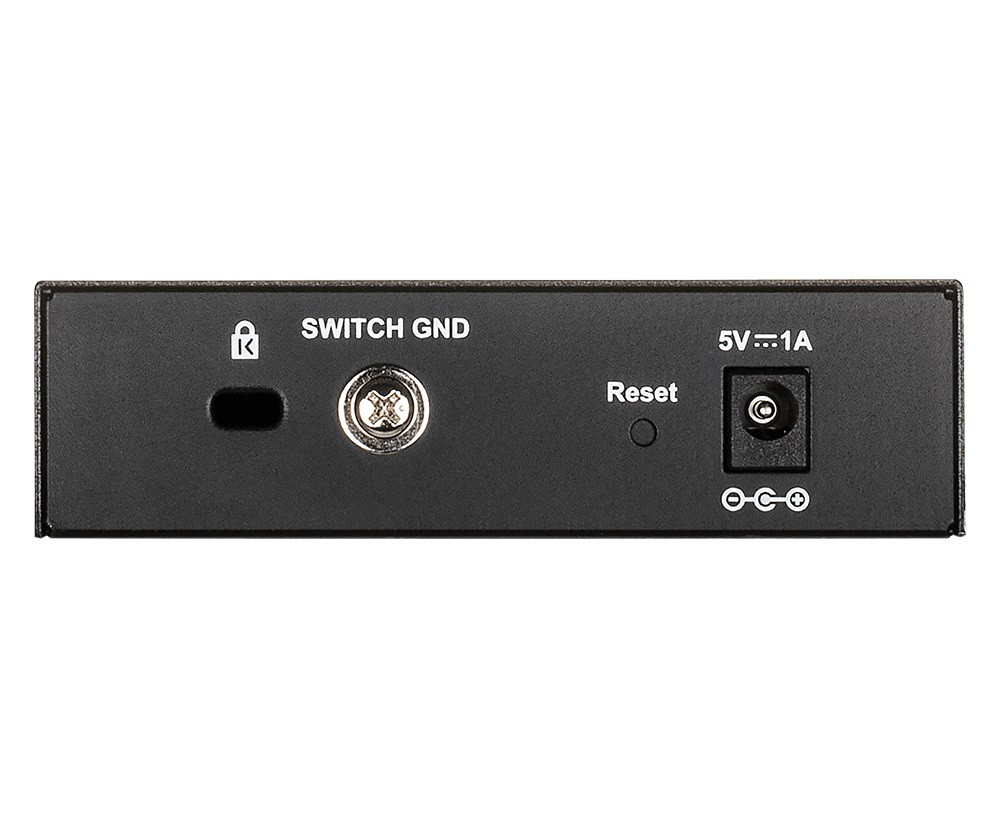

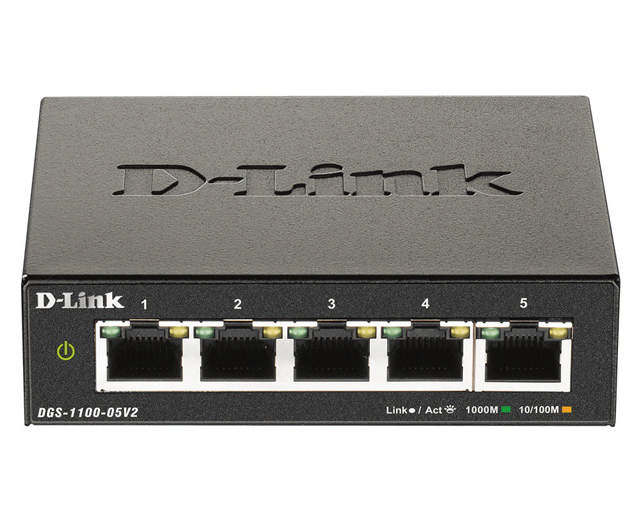

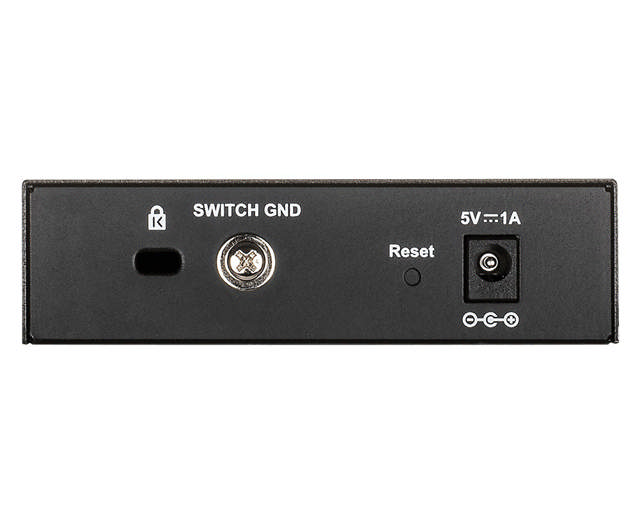

D-Link 5-Port Smart Managed Switch
D-Link DGS-1100, 5-Port Smart Managed Switch with 2 PoE and 3 non-PoE Gigabit Ports
The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.
DGS-1100-05PDV2
RRP $129.95
OutOfStock
Product Information
-
- RJ-45 Ports: 5
- RJ-45 Speeds: 1Gbps
- Combo Ports (RJ-45 + SFP): 2 PoE and 3 BASE-T Ports
- SFP (Small Form-Factor Pluggable) Ports : 0
- SFP Speeds: 0
- PoE++ (60w) or higher available?: Yes
- Number of PoE Ports: 2
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): 7.44
- Switching Capacity in Gigabits per Second (Gbps): 10
- Web-based GUI: Yes
- Redundant Power Supply: No
- 19" Rack Mountable: Yes
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): No
- Stacking Capacity (Virtual): No
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
- Ruggedized: No
- Operating Temperature: 0 to 40 C
- Unit dimensions: 150 x 97 x 28 mm
- Warranty Licence: LIFETIME
Specifications
| Cloud Managed | No |
| Cooling | Passive |
| Form factor | Rack-mount |
| Licence Required | No |
| Main Port Type | Ethernet |
| Managed | Smart Managed |
| OSI Layer Capability | Layer 2 |
| PoE Budget | PoE Passthrough |
| Port Count | 5 |
| Port Speed | 10/100/1000 |
| Redundant Power Supply | No |
| SFP Ports | 0 |
| Stackable | No |
| Standard Warranty | LIFETIME |
