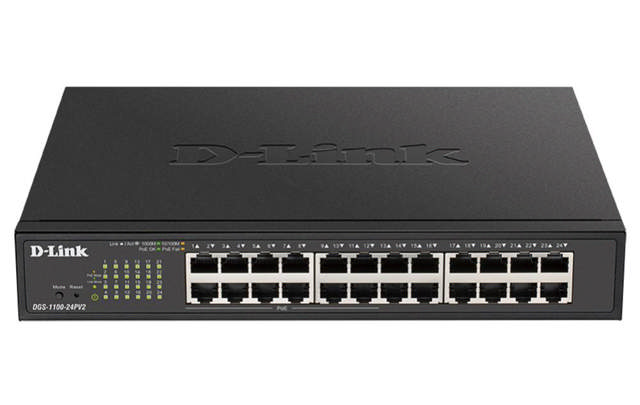

D-Link 24-Port Smart Managed PoE Switch
D-Link 24-Port Gigabit Smart Managed PoE Switch with 12 10/100/1000 Mbps and 12 PoE Ports
The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
DGS-1100-24PV2
RRP $729.95
Available in stock
Product Information
-
- RJ-45 Ports: 24
- RJ-45 Speeds: 10/100/1000
- Combo Ports (RJ-45 + SFP): 12 Mbps + 12 PoE Ports
- SFP (Small Form-Factor Pluggable) Ports : 0
- SFP Speeds: 0
- PoE++ (60w) or higher available?: Yes
- Number of PoE Ports: 12
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): 35.71 Mpps
- Switching Capacity in Gigabits per Second (Gbps): 48 Gbps
- Web-based GUI: Yes
- Redundant Power Supply: No
- 19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): No
- Stacking Capacity (Virtual): No
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
- Ruggedized: No
- Operating Temperature: -5 to 50 C
- Unit dimensions: 280 x 230 x 44 mm
- Warranty Licence: Limited Lifetime Warranty
Specifications
| Cloud Managed | No |
| Cooling | Passive |
| Form factor | Rack-mount |
| Licence Required | No |
| Main Port Type | Ethernet |
| Managed | Smart Managed |
| OSI Layer Capability | Layer 2 |
| PoE Budget | 100 |
| Port Count | 24 |
| Port Speed | 10/100/1000 |
| Redundant Power Supply | No |
| SFP Ports | 0 |
| Stackable | No |
| Standard Warranty | Limited Lifetime Warranty |
