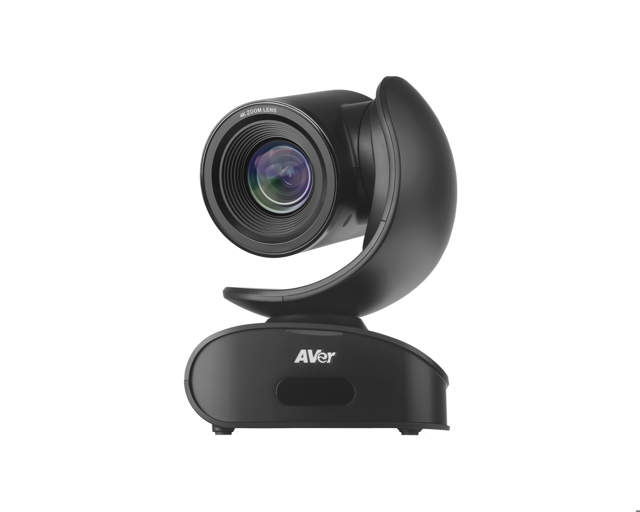

AVer CAM540 4K USB PTZ Camera
AVer CAM540 4K USB PTZ Conference Camera (4K UHD, USB 3.1, 86 FOV, 16x Zoom, PTZ 160 pan, 90 tilt, RS232) Microsoft teams certified
The CAM540 brings AVer's new SmartFrame auto-framing technology to 4K high definition video conferencing. With a wide field of view, the CAM540 is guaranteed to provide an incredible communication experience in your meeting room. AVer SmartFrame Gets Your Meeting Started Fast: The CAM540 delivers AVer's latest camera technology to your meeting room with AVer SmartFrame. SmartFrame maximizes the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast and with no hassle. No more complex settings or time wasting controls simply click a single button and find the most comfortable distance for your meeting with the CAM540 and SmartFrame.
CAM540
RRP $1,995.00
OutOfStock
Product Information
-
- 4K UHD PTZ Conference Camera
- FOV 86 degrees, 16X Total zoom
- Motorised Pan and Tilt Movement - Pan: +/- 160 degree Tilt: +90 degrees (up) - 30 degrees (down) with 10 camera presets (through remote control)
- Ideal for Mid to Large meeting rooms with up to 24 people / Up to 10 x 10m (33ft x 33ft)
- AVer SmartFrame Gets Your Meeting Started Fast: SmartFrame maximises the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast
- 4K Ultra HD: The CAM540 supports a high-end Sony 4K CMOS that allows for 4K video to be captured at 30 frames per second, providing users with an unbelievably lifelike meeting experience
- High Detail 16X Total Zoom: The CAM540 is built with cutting edge 16X total zoom capability. Bringing an unseen level of clarity to video conferencing
- Analytics for Efficient Meeting Rooms: The CAM540 provides an analytics API so enterprises and third-party software providers can obtain people-counting data

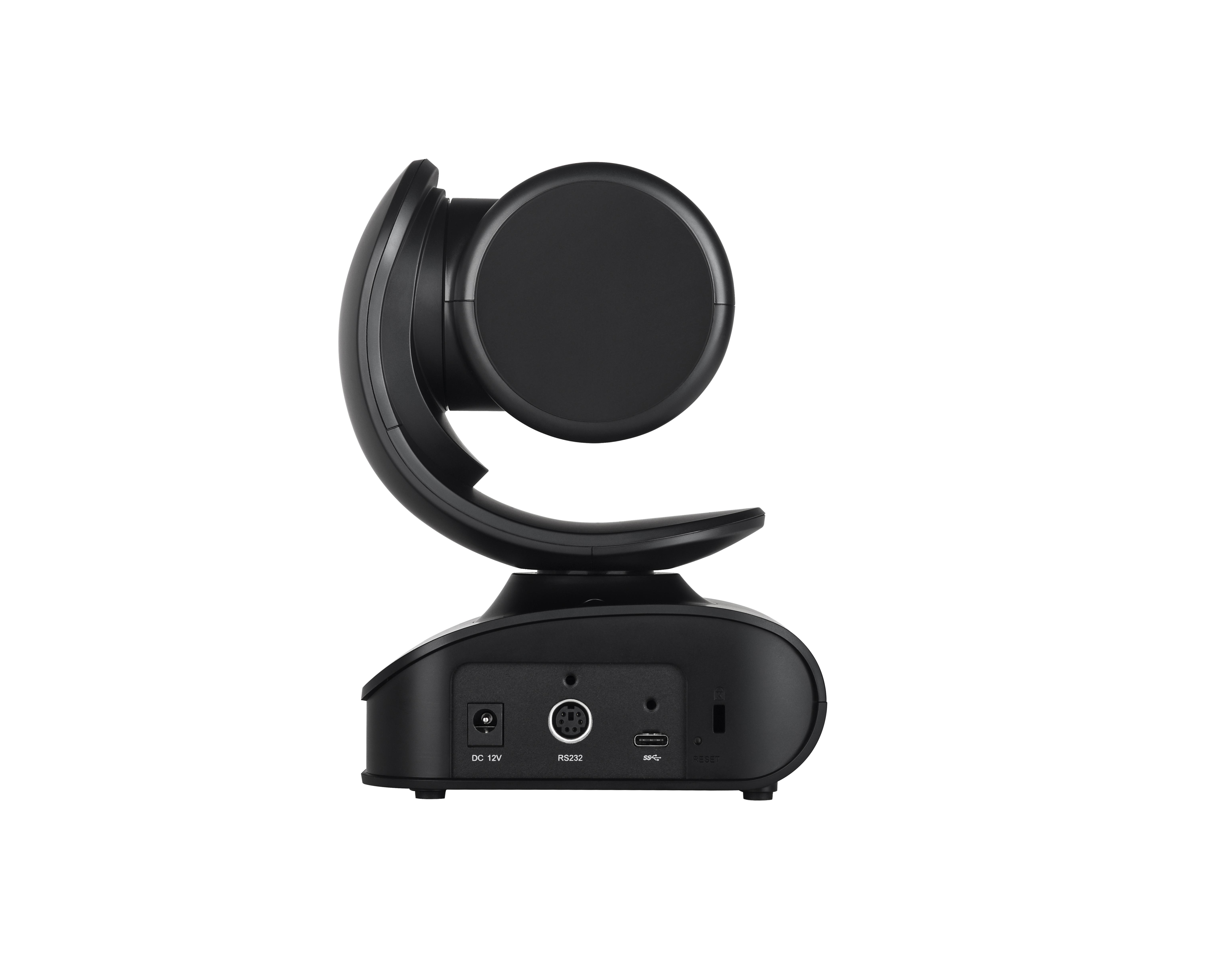

- Connectivity: 12V power adaptor, Mini DIN6 for RS232 connection, USB Type C connector
- Package contents: Camera, Remote control, Power adapter, USB3.1 type-C to type-A (6ft), USB3.1 type-A to type-C adapter, Metal mount, tripod screw
- Compatible Applications: Zoom, Adobe Connect, Blue Jeans, CyberLink U Meeting, Cisco WebEx, Google Hangout, GoToMeeting, Intel Unite, Microsoft Lync, Skype, Skype for Business
- Camera: Ultra-crystal clear image support up to 4K. Frame rate: 4K, 1080p , 720p , 640x480, 320x240
- Control funciton via: IR remote control, VISCA/pelco P/pelco D via RS232, UVC/ plug-and play, PTZapp
- System requirement: Windows 7/8/8.1/10, Mac OS X 10.7 or higher, Google Chromebook version 29.0.1547.70 Hardware Spec: 2.4GHz Intel Core 2 Duo processor, 2GB RAM or more, USB 3.1 Gen1 port
- Warranty 3 Years
- Microsoft teams and Skype for business certifed
Specifications
| Warranty | 3 Years |
| Auto Exposure (AE) | N/A |
| Diagonal field of view (dFoV) | 86Ā° |
| Dimensions | 97.8 x 130.7 x 171.1 mm |
| Focus | 1m+ |
| Focus Method (Lens type) | Auto focus |
| Image Sensor | Sony CMOS 4K |
| Max Resolution/Frame Rate | 4K 30fps |
| Microphone Type | N/A |
| Model Name | CAM540 |
| Software | PTZapp |
| Supported System | Windows Mac OS X Chromebox 3 |
| Video Format | YUV MJPEG |
