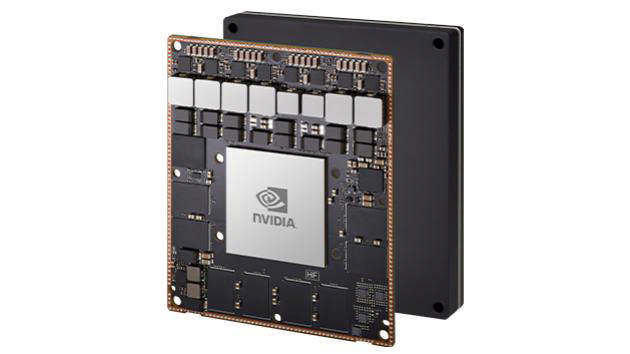

NVIDIA Jetson AGX Xavier Industrial 32GB
NVIDIA Jetson AGX Xavier Industrial Module 32GB
NVIDIA Jetson AGX Xavier Industrial delivers the highest performance for AI embedded industrial and functional safety applications in a power-efficient, rugged system-on-module. It’s form-factor and pin-compatible with Jetson AGX Xavier and offers up to 20X the performance and 4X the memory of Jetson TX2i, letting customers bring the latest AI models to their most demanding use cases. 32GB
900-82888-0080-000
RRP $3,500.00
Available in stock
Product Information
-
- GPU: NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores 20 TOPS (INT8)
- CPU: 8-core NVIDIA Carmel Arm v8.2 64-bit CPU 8MB L2 + 4MB L3
- DL Accelerator: 2x NVDLA 10 TOPS (INT8)
- Vision Accelerator: 2x 7-Way VLIW Vision Processor
- Safety Cluster Engine: Dual Arm Cortex-R5 in lockstep
- Memory: 32GB 256-bit LPDDR4x (ECC support) 136.5GB/s
- Storage: 64GB eMMC 5.1
- CSI Camera: Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 1.2 (up to 40Gbps) C-PHY 1.1 (up to 62Gbps)
- Video Encode: 2x 4K60 (H.265/H.264) 6x 4K30 (H.265/H.264) 12x 1080p60 (H.265/H.264) 24x 1080p30 (H.265/H.264)
- Video Decode: 2x 8K30 (H.265) 4x 4K60 (H.265) 8x 4K30 (H.265) 18x 1080p60 (H.265) 36x 1080p30 (H.265) 24x 1080p30(H.264)
- UPHY: 8x PCIe Gen4 3x USB 3.1 Single Lane UFS
- Networking: 10/100/1000 BASE-T Ethernet
- Display: Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b
- Other I/O: USB 2.0 UART, SPI, CAN, I2C, I2S, DMIC & DSPK, GPIOs
- Power: 20W | 40W
- Mechanical: 100mm x 87mm 699 pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate
